Double Sheet Detection 10*8 300KHz Ceramic Ultrasonic Traduscer
Double Sheet Detection 10*8 300KHz Ceramic Ultrasonic Traduscer
Specifications
Brand Name :
HAOLI
Model Number :
HL-40-16
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
500
Price :
Negotiation
Payment Terms :
TT
Supply Ability :
10000 pieces one day
Delivery Time :
7 work days
Frequency :
30±1KHZ
Capacitance :
1200±30%
Transmitting sound Pressure Level :
Min.120dB
Sensitivity :
Min.-60dB
Direction :
14±2°
Material :
PLASTIC
Description

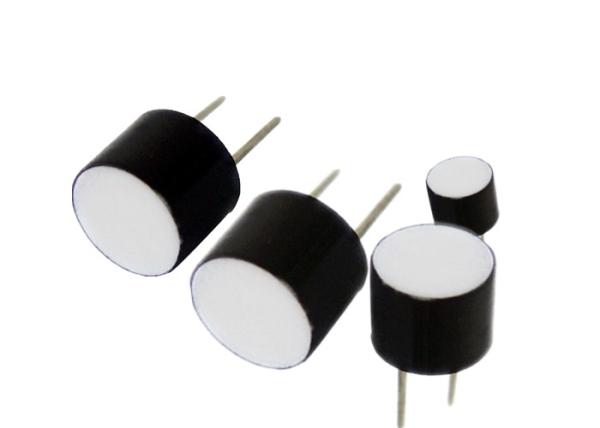

10*8 300KHz Ceramic Ultrasonic Traduscer Double Sheet Detection

Product Description

To detect paper refeeding, an accuracy of 1mm and sharpness are necessary. Traditional bending oscillators, which have a frequency of more than 70 kHz, will lose their practicality. Therefore, the thickness of high-frequency piezoelectric ceramics is used for longitudinal vibration.

In this case, the acoustic impedance matching of piezoelectric ceramics and air is very important.

The difference between the acoustic impedance of the piezoelectric ceramic and the acoustic impedance of the air is large, so the vibration radiation loss of the piezoelectric ceramic is large.

Therefore, a special material and a piezoelectric ceramic are adhered as a sound-integrated layer, and the matching with air is measured. This structure can realize hundreds of kHZ ultrasonic sensors

Features:

High sound pressure level and high sensitivity

Compact size.

Low power consumption.

Application:

This product is specially used for double-feed detection of scanner, printer, ATM, etc.

Specification:

Model HL-300-10
Frequency 300±10KHZ
Capacitance 1200±30%pF
Transmitting sound Pressure Level Min.90dB
Sensitivity Min.60dB
Impedence 900Ohm
Operating temperature -40 ° C ~ +80 ° C
Decay Time Max.1.5ms
Direction 50±10°
Maximum input voltage 150Vp-p

Precautions

Sensors are precision instrument, please don't scratch the surface.

  • Ultrasonic sensors have potential direction; please pay attention to the installation location.
  • This sensor is designed for use in air. Do not use this sensor in fluid.
  • To prevent sensor malfunctions, operational failure or any deterioration of its characteristics, do not use this sensor in the following, or similar conditions.
