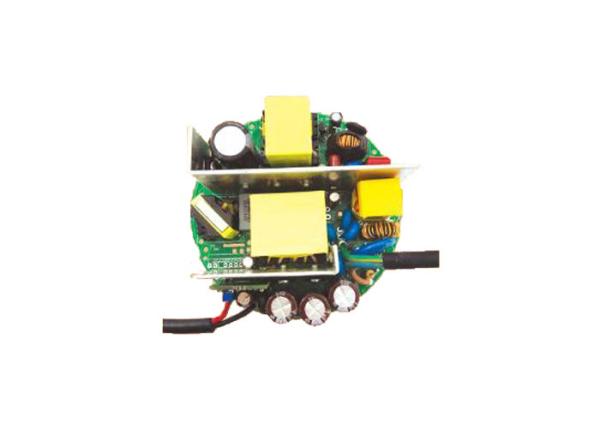

Constant Current Source For Mining Lamp 150W LED Switching Power Supply

Product features

International universal full range input

Protection function: short circuit, overload, over temperature, over voltage

Internal active power factor correction function, PF>0.95 (full load)

Special power supply for mining lamp

Maximum efficiency 94%

Multiple functional models are available

Wide range DC output

Natural air cooling

5 years warranty

Technical specifications

Input voltage 90Vac~305Vac
Input frequency 47Hz~63Hz
Input current 2.0A largest
Inrush current Maximum 60A,230Vac(cold start)
Starting time Maximum 0.5s (rated input voltage)
Constant current accuracy Maximum ±3%
Pressure I/P-O/P: 3750Vac, I/P-FG: 1875Vac
Operating temperature -35°C~+70℃
The derating curve Output full load at 60°C,Derogate at 70°C to 80% load output
Storage temperature -40℃~+85℃
Protection function Short circuit, overload, over temperature, over voltage
Overcurrent protection 95%- 105% fixed current limit, automatic recovery
Safety standards UL8750, UL1310 Class 2, EN61347-1, EN61347-2-13, UL1012,UL60950
Electromagnetic compatibility standard EN55015, EN61000-3-2, 3,EN61000-4-2,3,4,5,6,8,11, EN61547
Standard output wire UL Rated,18-16#AWG

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,input voltage 5 seconds without damage

Model in the list

FAQ

Q1:How many year warranty of your Led driver?
A:Two years
Q2:Do you have switch power factory?
A:Yes.We are OEM&ODM manufacturer in Chengdu
Q3:Do you offer sample of power?
A:Yes.We offer free sample ,but you need pay the shippment.
Q4:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q5:Do you have any certification?
A:Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it
