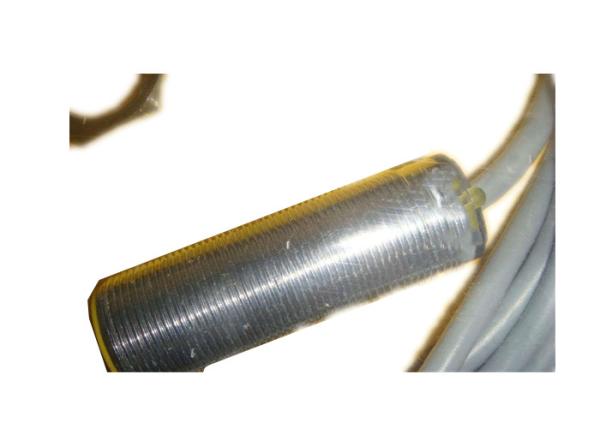

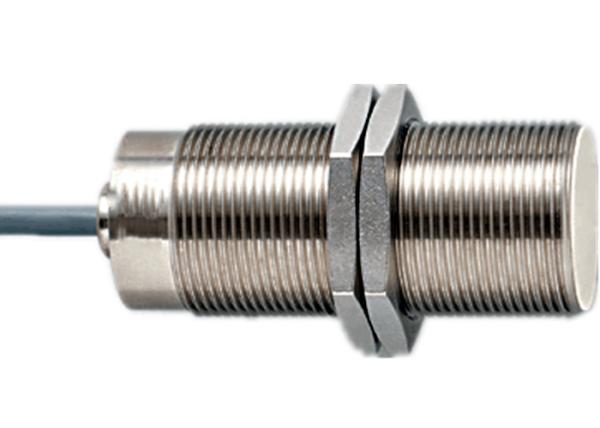

Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
MOQ :
500
Price :
Negotiation
Payment Terms :
TT
Delivery Time :
8 Work Days
Switching Distance :
10-250
Switching Frequency :
180±5KHZ
Voltage :
10-30V DC
Connector :
M12
Output :
NPN/PNP
Protect Class :
IP67
Description

M30 180KHZ Ultrasonic Proximity switches Radar Distance Measuring Sensors

Description

  • Reliable measuring signal even in harsh environments, ambient light and dirt:Great accuracy < 1 mm and low temperature drift < ± 10 mm
  • Fast measurements and reaction to positon change:Very fast response times < 5 ms

Specification

Diameter M30
Shielded Non-shielded Shielded
Switching Distance:(mm) 10mm
Housing Material Stainless steel
With LED Without LED With LED
Operating Voltage 10-30VDC
Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1KHz/500Hz
Response Time 0.2ms/0.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <1.0%(Sr)
Protection Category IP67
Operating Temperature -25°C - +70°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2

Shielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LEDShielded Ultrasonic Proximity Switch Stainless Steel Housing Material With LED
