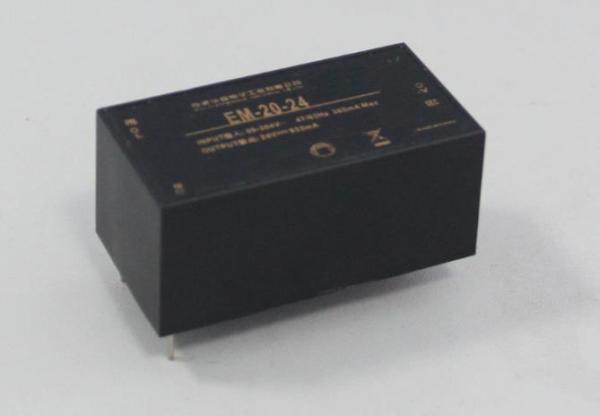

20W Single Output (AC-DC) Industrial Power Supply

Product features

• Universal AC input / full range
• Compact, High efficiency
• Standby power consumption<0.5W
• Regulated output, low ripple, low noise
• Fully encapsulated plastic case
• 3 years warranty

Specifications

Input voltage 90VAC~264VAC or 120VDC~370VDC

Input frequency 47HZ~440Hz

Inrush current 40A @ 230VAC

20A @115VAC (<2ms cold start)
Voltage set point accuracy ±2%

Line regulation ±0.5% (typ.)
Short circuit protection Hiccup technique, auto-recovery

Overload protection Hiccup technique, auto-recovery

I/O isolation voltage 3000VAC

Operating temperature -40℃~+70℃

Storage temperature -40℃~+85℃

Temp. Coefficient ±0.02%/℃

EMI EN55022 Class B

EMS EN55024

Weight 59g

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
