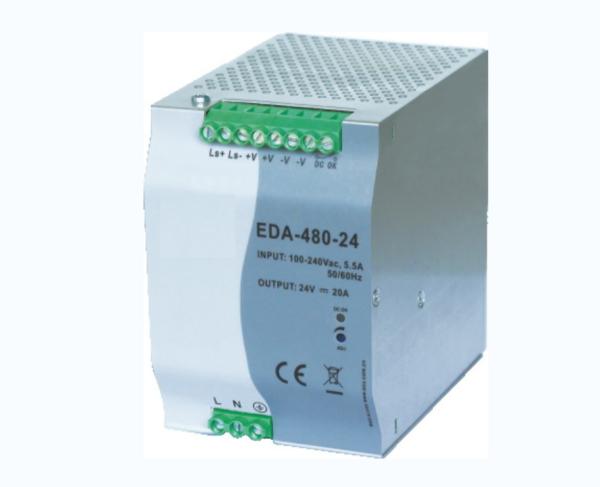

Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply
Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply
Specifications
Brand Name :
HAOLI
Certification :
CE，ISO9001，ROHS
Place of Origin :
ChengDu
Delivery Time :
10 work days
MOQ :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Price :
Negotiation
Input frequency :
Input frequency
Inrush current :
35A @ 230VAC 20A @115VAC full load cold start
Hold up time :
≥20ms @ 230VAC full load
Over voltage protection :
120%~140%
Operating temperature :
-25℃~70℃(refer to output derating curve)
Safety standard :
EN60950-1, UL508
Withstand voltage :
I/P-O/P: 3kVAC, 1min I/P-FG: 1 5kVAC, 1min O/P-FG: 0.5kVAC, 1min
Description

480W Single Output Industrial Power Supply

Product features
  • Universal AC input / full range
  • PF>0.99 @ 115VAC, >0.96 @ 230VAC
  • High efficiency up to 94%
  • Power on indication
  • Air cooling
  • Built-in DC OK relay contact
  • Parallel redundant function (1+1)
  • 150% peak load capability
  • Protections: Overload / Over voltage / Over temperature / Short circuit
  • 100% full load burn-in test
  • 3 years warranty
Specifications

Input voltage 90VAC~264VAC, 124VDC~370VDC
Input frequency 47HZ~63Hz
Inrush current 35A @ 230VAC
20A @115VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 105%~150% of full load for 3s and shutdown output voltage with auto-recovery
Over voltage protection 120%~140%
Operating temperature -25℃~70℃(refer to output derating curve)
Safety standard EN60950-1, UL508
EMC standard EN55022 Class B,EN61000-6-2
Withstand voltage I/P-O/P: 3kVAC, 1min
I/P-FG: 1 5kVAC, 1min
O/P-FG: 0.5kVAC, 1min

Weight 1.32kg/pcs

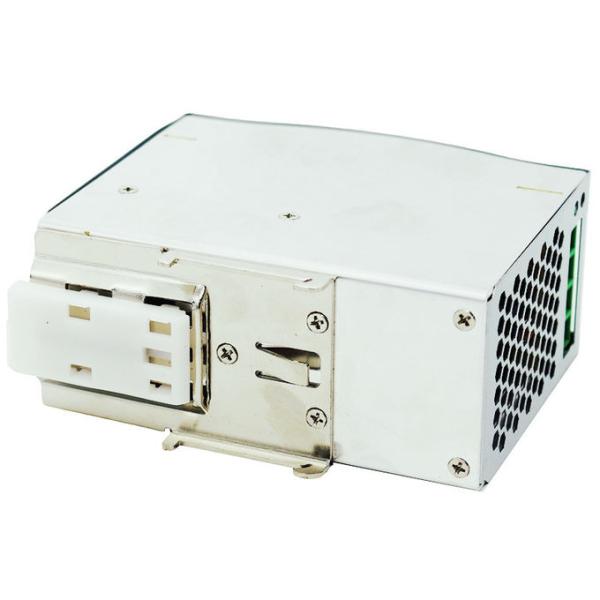

Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply

Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply

Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply

Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power SupplyParallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

P/N Output Tol. R&N Effi. Load Regulation DC Adjustment Range
EDA-480-24 24V,20A ±1% 100mV 94% ±2% 24V~28V
EDA-480-36 36V,13.5A ±1% 150mV 94% ±2% 36V~40V
EDA-480-48 48V,10A ±1% 150mV 94% ±2% 48V~55V
