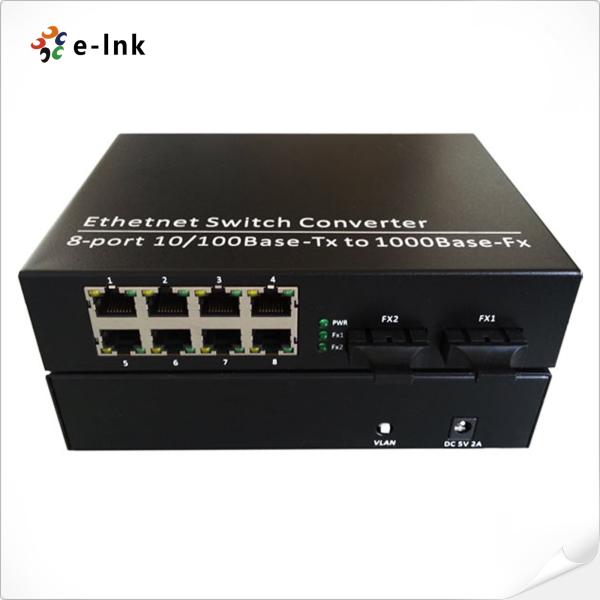

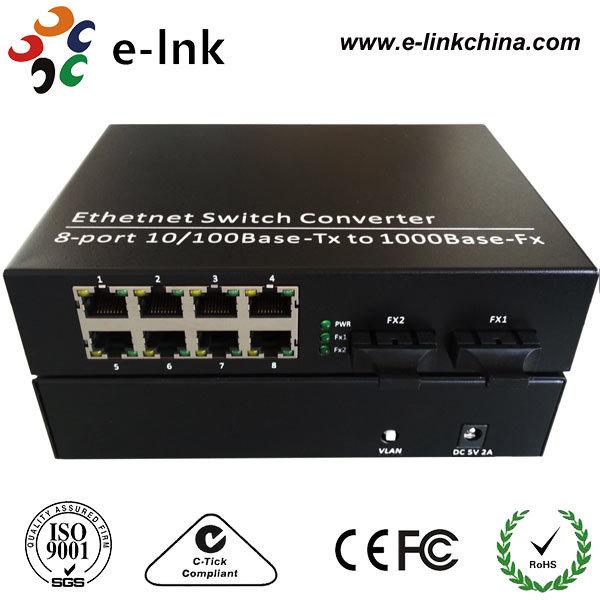

10/100/1000M 8-TX + 2-FX Port Fiber Switch
10/100/1000M 8-TX + 2-FX Port Fiber Switch
10/100/1000M 8-TX + 2-FX Port Fiber Switch
10/100/1000M 8-TX + 2-FX Port Fiber Switch
10/100/1000M 8-TX + 2-FX Port Fiber Switch
10/100/1000M 8-TX + 2-FX Port Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-2800G 8
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Wavelength :
850nm/1310nm/1550nm
Operating Temperature: :
-10~55ºC
Power supply :
DC5V 2A (external)
Flow control :
Full duplex: flow control; half duplex: back pressure
Description

10/100/1000M 8-TX + 2-FX Port Fiber Switch

Product Advantages

· Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)

· Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· 1000M Fiber port supports 1000M and Full Duplex mode.

· Supports flow control and broadcast storm protection.

· Supports VLAN and QoS.

· Supports max 10K bytes frame.

· Low power consume (4W), low heat, and good reliability.

Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps

Standard

IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Fiber Optic:

Multimode Fiber:50/125,62.5/125μm

Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)

Category-5 twisted pairs: 100m

Port

8*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs

2*SC or SFP Port

Conversion means

Media conversion, store-and-forward

Flow control

Full duplex: flow control; half duplex: back pressure

Error rate

<10-9

MTBF

100,000 hours

MAC address table

1K

Power supply

DC5V 2A (external)

Power consumption

4W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Overview

LNK-2800G 8 port Gigabit Ethernet Switch with eight 10/100/1000M UTP ports and two 1000M Fiber Ports, which converting the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode).
