10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-2200G-SFP
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Wavelength :
850nm/1310nm/1550nm
Operating Temperature: :
-10~55ºC
Power supply :
DC5V 2A (external)
Power consumption :
3.5W
Description

10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Switch

Product Advantages

  • Two RJ45 ports and two SFP sockets ,It can convert Optical－Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
  • Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
  • Broadcast storm protection
  • Supports VLAN and QoS
  • Supports the max 9K bytes frame

Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps

Standard

IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Fiber Optic: depends on SFP Module

Category-5 twisted pairs: 100m

Port

2*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SFP socket

Conversion means

Media conversion, store-and-forward

Flow control

Full duplex: flow control; half duplex: back pressure

Error rate

<10-9

MTBF

100,000 hours

MAC address table

1K

Frame buffer memory

512Kb RAM

Power supply

DC5V 2A (external)

Power consumption

3.5W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Overview

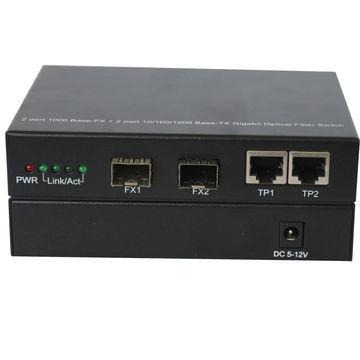

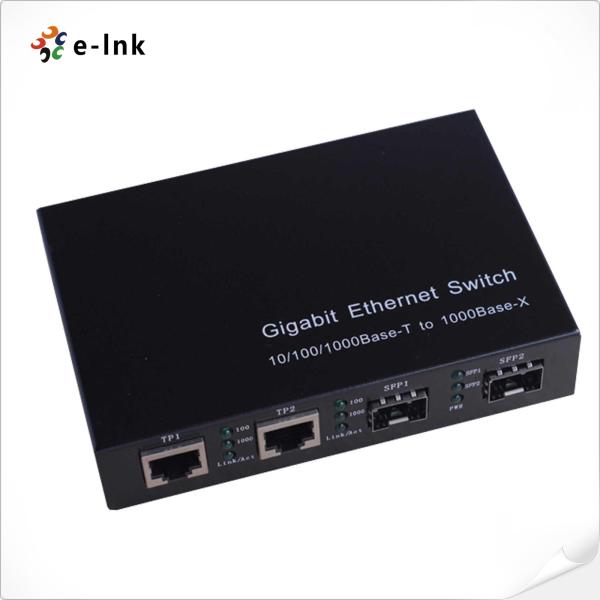

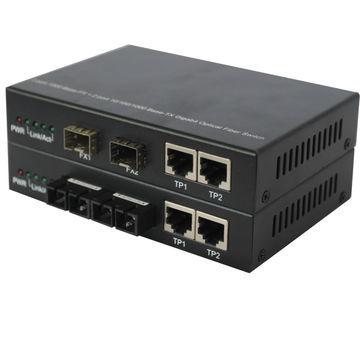

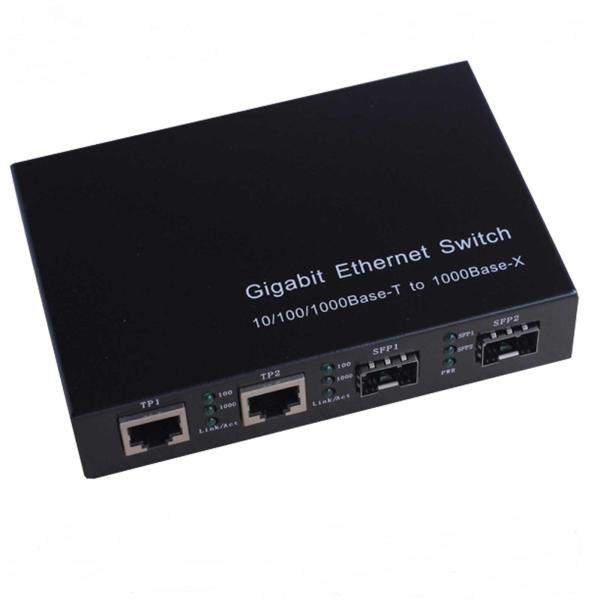

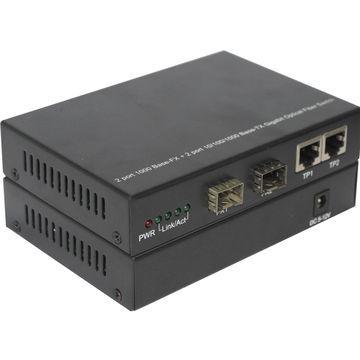

LNK-2200G-SFP Gigabit Ethernet Switch with two 10/100/1000M UTP ports and two 1000M SFP sockets. The end users can use different SFP module according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
