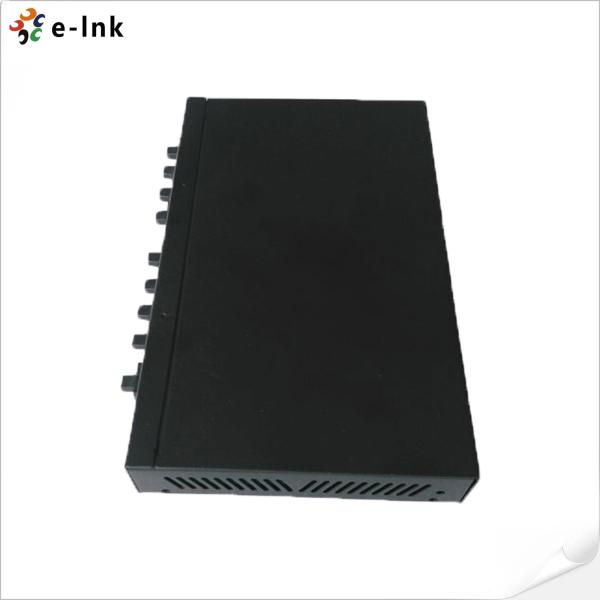

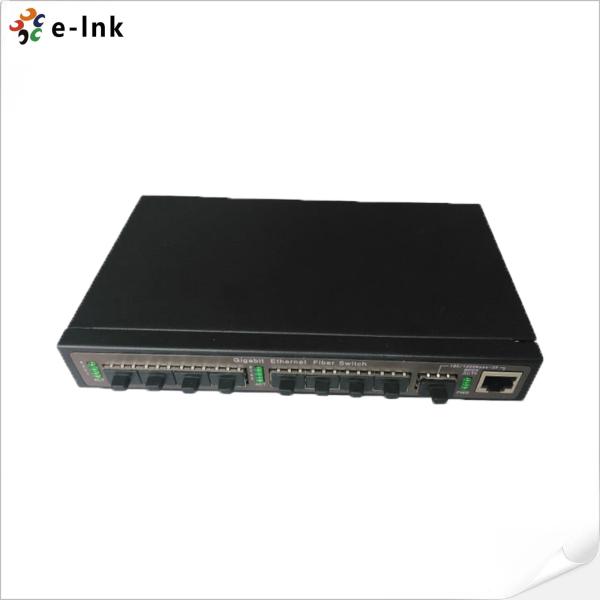

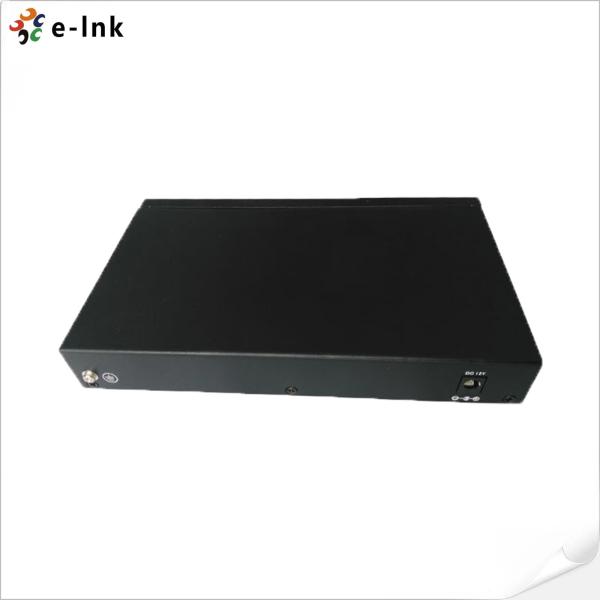

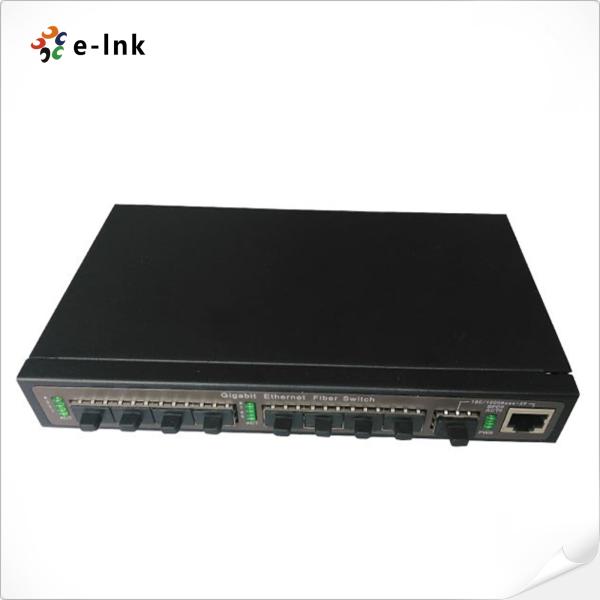

8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-FS800
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Wavelength :
850nm/1310nm/1550nm
MAC :
8K
Buffer memory space :
1Mbit
Working temperature :
-10~60℃
Storage temperature :
-40~80℃
Description

8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch

Advantage

► support maximum 8 SFP fiber ports and 1 GE Combo port (SFP fiber port/RJ45 port interchange)

► Support SFP hot plug

► Support each port full rate, full-duplex non-blocking forwarding

► Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth

► All optic ports, strengthen the an-interference ability

Overview

E-link LNK-FS800 is a nine ports unmanaged 100M all optic fiber switch. It offers eight SFP fiber ports access

and one Gigabit Combo port (1000M SFP port and 10/100/1000M adaptive RJ45 Ethernet interchange) uplink.

LNK-FS800 supports SFP modules hot plug, and supports to work with fiber switches, fiber converters and other

devices witch fiber ports. It applies to security system, electric system, traffic system requirements.


8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch

Technical Indexes

Parameter

Specification

Standard

IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree

Wavelength

850nm/1310nm/1550nm

Distance

100M SFP: Depending on SFP Module

Cat5:100m

Port

8 SFP fiber ports: 100Mbps

1 Gigabit Combo port:1 Gbps, 1000M SFP&10/100/1000M RJ45

MAC

8K

Buffer memory space

1Mbit

Bit error rate

<1/1000000000

MTBF

100000 hours

Power

DC12V/2A (DC12-48V)

Power consumption

10W

Working

temperature

-10~60℃

Storage temperature

-40~80℃

Humidity

5%~90% non-condensing

Dimension

28mm (H)×193mm(W)×119mm (D)

Application

8x100M SFP Ports + 1x1000M SFP Port /TP Port (Combo) uplink Fiber Switch

Ordering Information

Item

Description

LNK-FS800

9-ports Unmanaged Fiber Switch: 8x100M SFP ports + 1x1000M SFP port (Combo) uplink + 1x10/100/1000M RJ45 TP port (Combo) uplink, SFP slot supports 100BASE-SFP, not include SFP modules, External Power DC12V
