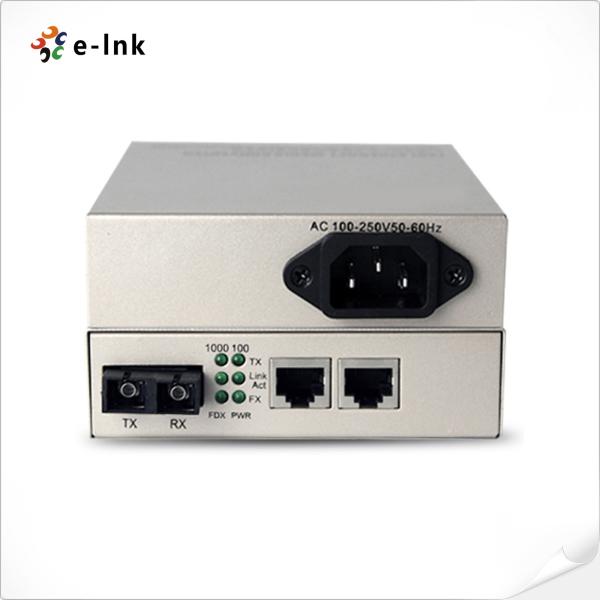

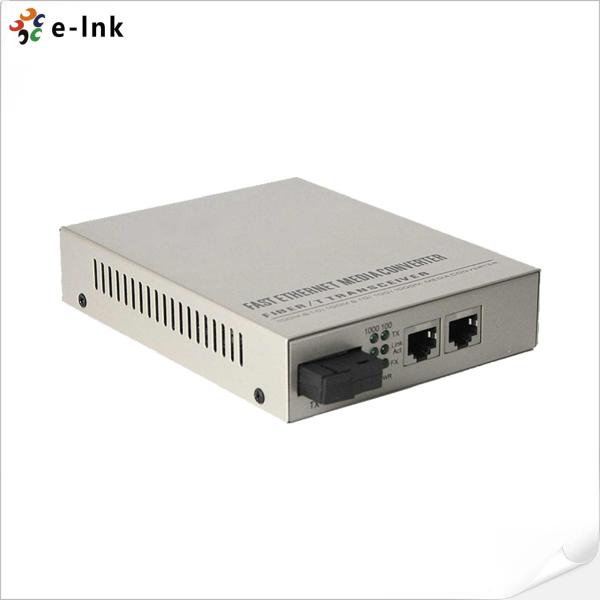

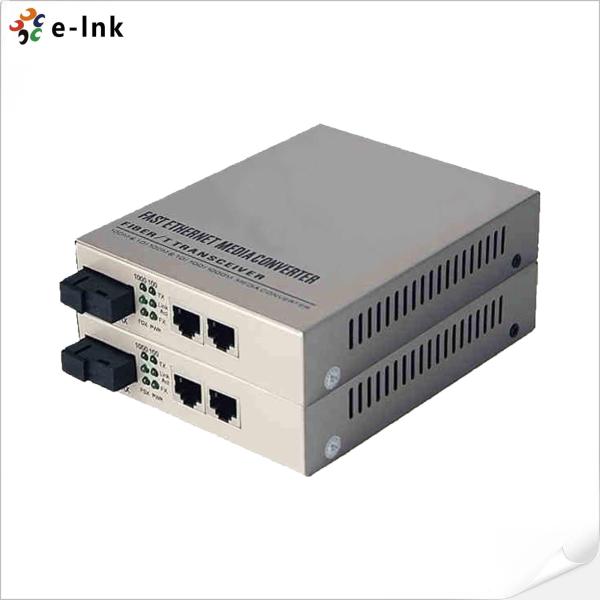

1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU
Specifications
Brand Name :
E-link
Model Number :
LNK-1200N
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Wavelength :
850nm/1310nm/1550nm
Operating Temperature: :
-10~55ºC
Power consumption :
5W
Power supply :
Internal: AC90~264V/DC100~380V input
Description

1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU

Product Advantages

· In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX standard.

· Support 1k MAC address.

· Power and link LED indicators.

· Back pressure flow control for full duplex IEEE 802.3X and half duplex.

· Automatic identification of MDI/MDI-X cross line.

· Support max forwarding packet length 1552/ 1536 bytes option.

· Can be rack mounted in 2U 14 slots rack.

Technical Indexes


Parameter

Specifications

Access mode

10/100Mbps

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control

Wavelength

850nm/1310nm/1550nm

Transmission distance

Dual-fiber multi-mode: 2 km;

Dual-fiber single mode: 20/40/60/80/100/120 km;

Single fiber single mode: 20/40/60/80/100 km

Category-5 twisted pairs: 100m

Port

Two RJ45 port: for connecting STP/UTP category-5 twisted pairs

One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)

Single mode, dual fiber: SC or ST (9/125μm)

Single mode Single fiber: SC or ST (9/125μm)

Conversion means

Store and Forward mode or Cut-Through mode

Buffer space

Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

<19-9

MTBF

100,000 hours

LED indicator

POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)

Power supply

Internal: AC90~264V/DC100~380V input

Power consumption

<40W (the chassis at full load), <2W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Application

1 Fiber Port+ 2 UTP Ports 10/100M Media Converter with Buit-in PSU

Overview

LNK-1200N is the fiber switch with 1 fiber port and 2 UTP ports. The fiber switch makes full use of advanced optic transmission technology to convert Ethernet signal to optic type and transmit signal over long distance. This kind of media converter can extend the transmission distance to 2 kilometers (multimode) or 120 kilometers (single mode), also achieves the function of Ethernet switches. It is an economical solution to employ this kind of media converter on networking transmission.
