Specifications
Brand Name :
E-link
Model Number :
ETH-IMC2408M
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Ethernet Switch Standard Export Package
Keywords :
Industrial Managed Ethernet Switch
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
MTBF :
> 200,000 hrs
Weight :
0.55Kg
Dimensions (WxDxH) :
149 x 114 x 50 mm
Power Consumption :
8W Max.(PoE in Use<240W)
Description

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Advantages

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Overview

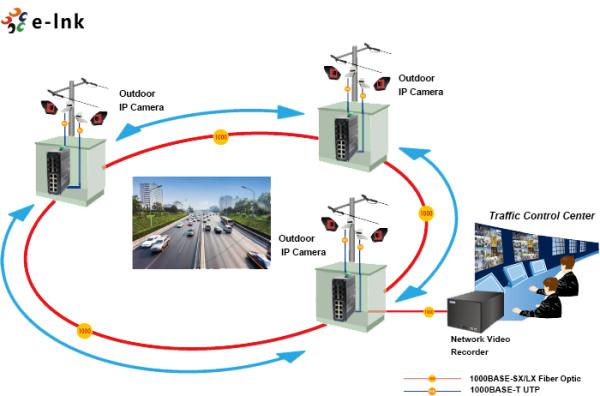

ETH-IMC2408M Series is the managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3ae 10GBase-R

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

1,488,000,000pps (10000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Connector:

8 x RJ45

RS485:

1 x RS485 (Optional)

Optical Port:

4 x 1000Base-X SFP

2 x 10G Base-SR/LR SFP+

USB-C:

1 x USB-C (for Management)

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch ordering information


Model

Description

ETH-IMC2408M

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
