Specifications
Brand Name :
E-link
Model Number :
LNK-308
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension :
27mm (H)×77mm(W)×139mm (D)
Operating Temperature: :
-10~60℃
Power :
DC5V/1A
Power consumption :
1.5W
Transfer Method :
Store-and-Forward
Switching Capacity :
16G
Description

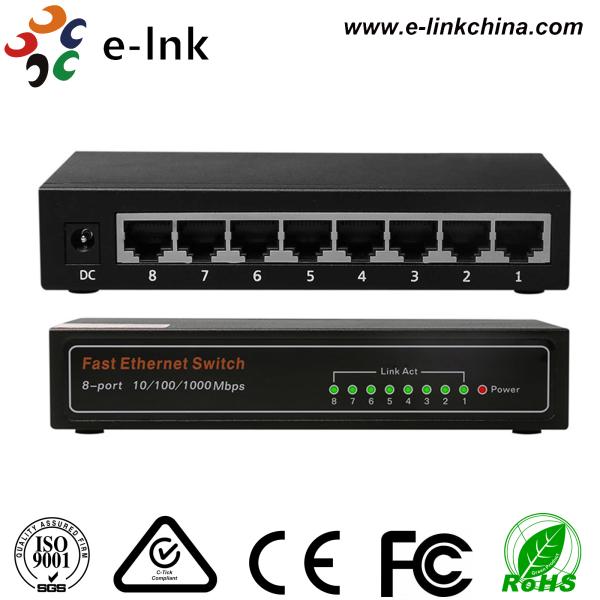

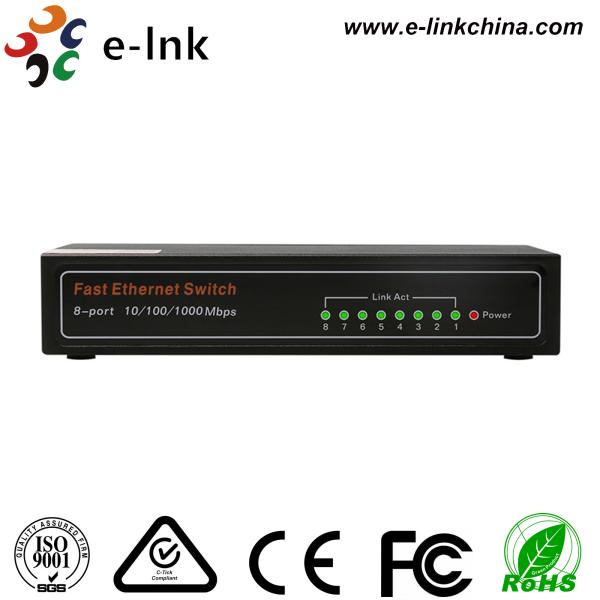

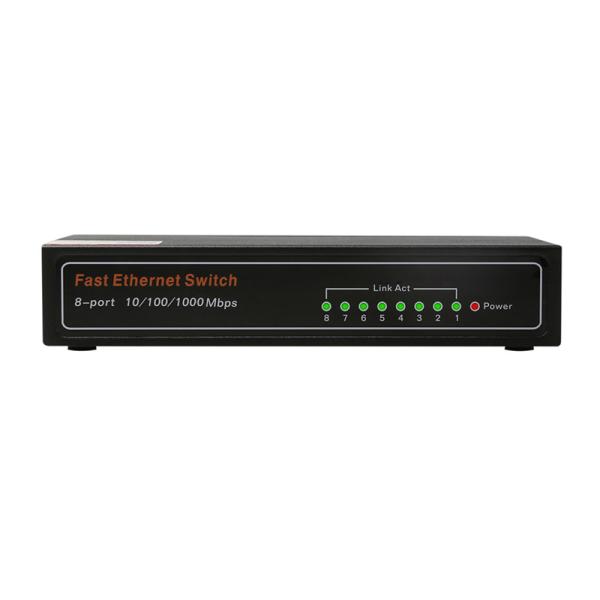

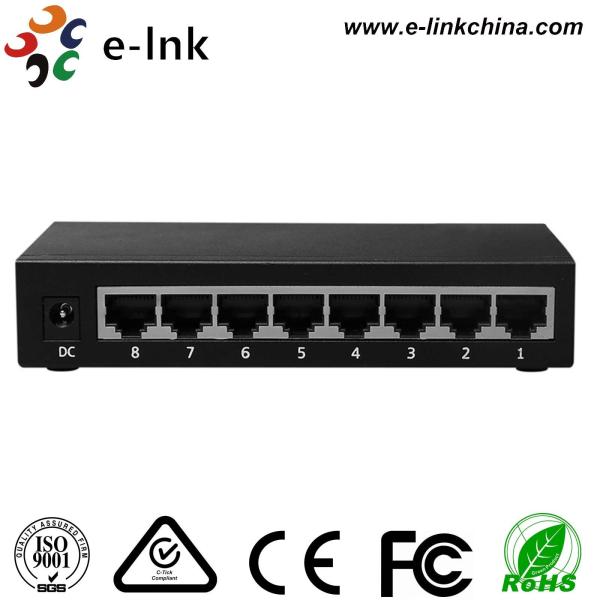

Unmanaged 8 port 10/100/1000Mbps Ethernet Switch

Product Advantages

  • Complies with IEEE 802.3, IEEE 802.3u standards
  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Metal case, desktop
  • External Power Adapter supply


Technical Indexes

Parameter

Specification

Chipset

RTL8370N

Standards

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

1000Base-Tx: UTP category 5, 5e cable (maximum 100m)

Switching Capacity

16G

MAC

8K Automatically learning, automatically Update

Number of Ports

8x 10/100/1000Mbps Auto-Negotiation ports

LED indicators

10/100/1000M Link/Act, Other Power

Bit error rate

<1/1000000000

Transfer Method

Store-and-Forward

MTBF

100000 hours

Power

DC5V/1A

Power consumption

1.5W

Working temperature

-10~60℃

Storage temperature

-40~80℃

Humidity

5%~90% non-condensing

Dimension

27mm (H)×77mm(W)×139mm (D)

Overview

E-link LNK-308 series is 8 port 10/100/1000Mbps unmanaged switch, offer 8 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wire speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.


Ordering Information


Model

Description

LNK-308

8x 10/100/1000M Unmanaged Ethernet Switch, DC5V/1A
