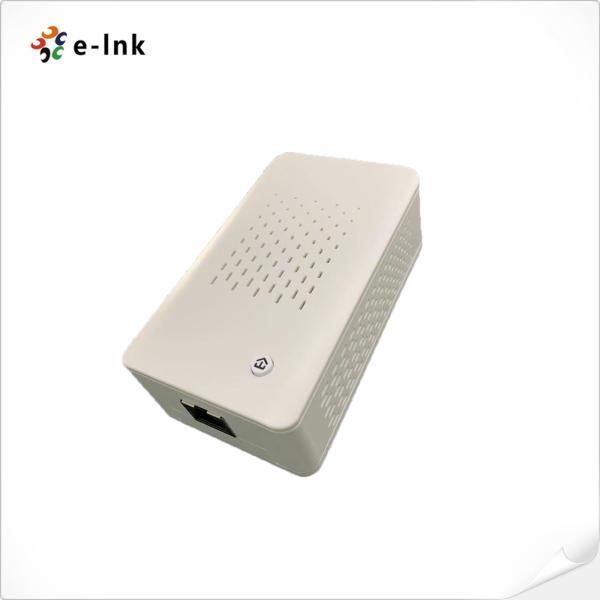

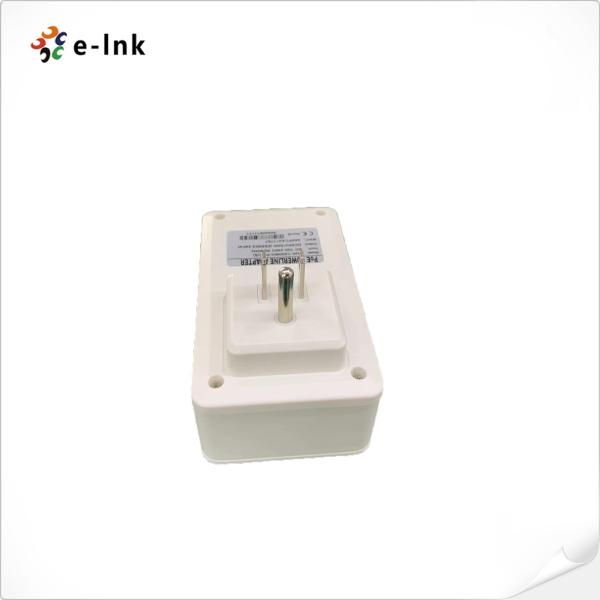

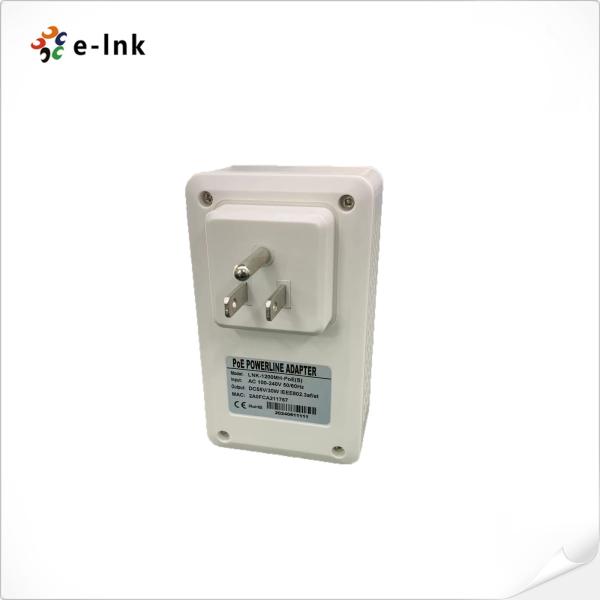

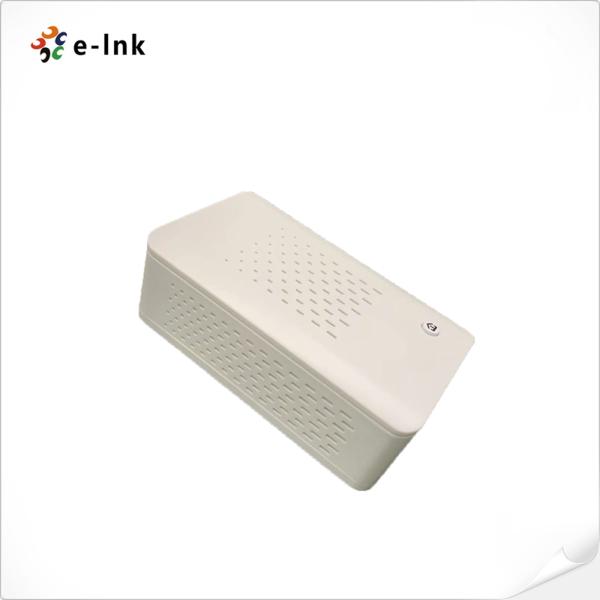

1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
1200M HomePlug AV Powerline Adapter with PoE
Specifications
Brand Name :
E-link
Model Number :
LNK-1200MH-POE(S)
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Storage Temperature :
-20°C to 70°C
Mark :
CE
Housing :
Aluminum
Input Voltage :
100-240V AC
Mounting Type :
DIN-Rail Mount
Description

1200M HomePlug AV Powerline Adapter with PoE

Advantage

· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply

· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality

· No need new wires and use at any power socket with up to 500 meters

· Simple plug and easy to install fully compliant with IEEE802.3/802.3u,IEEE802.3at/af HomePlugAV/HomePlugAV2 standard

· Provide DC55V power for the PoE PD over CAT5e / CAT6

Overview

The LNK-1200MH-POE(S) Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on

a concept of No New Wires data communications, and it transforms your in-house powerline into

a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the

Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and

increase network coverage within a home. Surf the Internet and share data at the speed up to

1Gbps PHY rates through powerline, And Built-in PoE Injector to provide 55V/48V classification

power via CAT5E / CAT6.

Technical Indexes

Parameter

Specification

Transfer rate (PHY):

1200Mbps

Range:

up to 500m

Frequency Band

2~68 MHz

Access-Method:

OFDM

Powerline Connector:

EU, UK, AU and US

Network Connector:

1x RJ45 10/100Base-TX

Encoding:

128Bit AES-Encryption with key management

LED-Displays:

PLC (PLC signal light)

ACT

PWR (power light)

ETH (Ethernet light)

PoE (POE light)

Power supply:

100~240 VAC, 50/60 Hz

Power over Ethernet:

PoE function gets solved on the veins 4,5 (+) and 7,8(-), no data pairs, max. Output power 55VDC 30W/48VDC, 15.4W

Power consumption:

3.9 watts without PoE terminal, 35 watts maximum

Supported Standards:

IEEE 802.3

IEEE 802.3x

IEEE 802.3u

IEEE 802.3af

IEEE 802.3at

Auto MDI / X

HomePlug AV2

Operating Systems:

Windows® XP32bit, Windows® Vista 32/64bit, Windows® 7 32/64bit, Linux®, Mac OS® X and all TCP/IP Operating Systems

Application

1200M HomePlug AV Powerline Adapter with PoE
