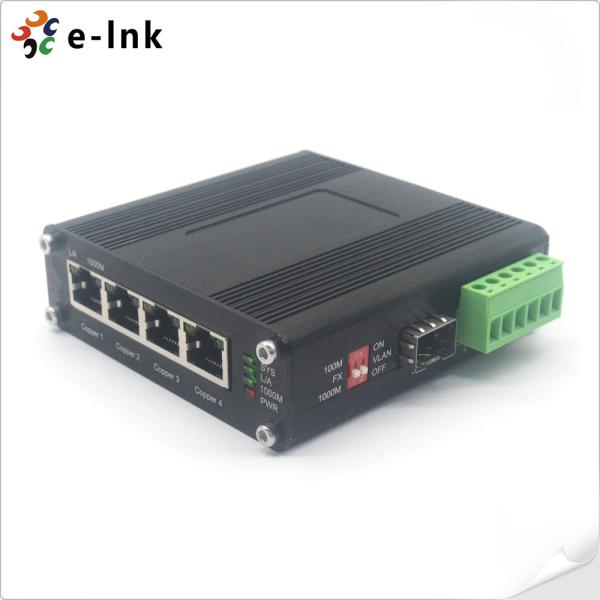

Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC-A1400G-SFP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$29.9-389
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Mounting Options :
DIN-Rail/Wall-mount
Dimensions (WxDxH) :
95 x 95 x 30 mm
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Input Power :
110~230VAC, 6-pin terminal block
Power Consumption :
5W Max
Description

Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input


Advantages

► 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (DIP switch)

► Supports flow control and broadcast storm protection.

► Supports VLAN and QoS.

► Supports max 10K bytes frame.

► 110~230VAC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature



Overview

LNK-IMC-A1400G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK- A1400G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

The LNK-A1400G-SFP Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet. Special AC power input design, support 110V~230VAC.



Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input



Ordering Information

Model

Description

LNK-IMC-A1400G-SFP

Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 110~230VAC Power Supply. Open Wire for Terminal Block
