Specifications
Brand Name :
E-link
Model Number :
LNK-INJ301-30
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
InjectorStandard Export Package
Keywords :
Industrial Gigabit PoE+ Injector
Input Power :
12~48VDC (Terminal Block)
Power consumption :
36W Max.
Operating humidity :
5% to 95% non-condensing
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH): :
95 x 70 x 30 mm
Description

12~48V DC Power Input Industrial Gigabit PoE+ Injector

12~48V DC Power Input Industrial Gigabit PoE+ Injector Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

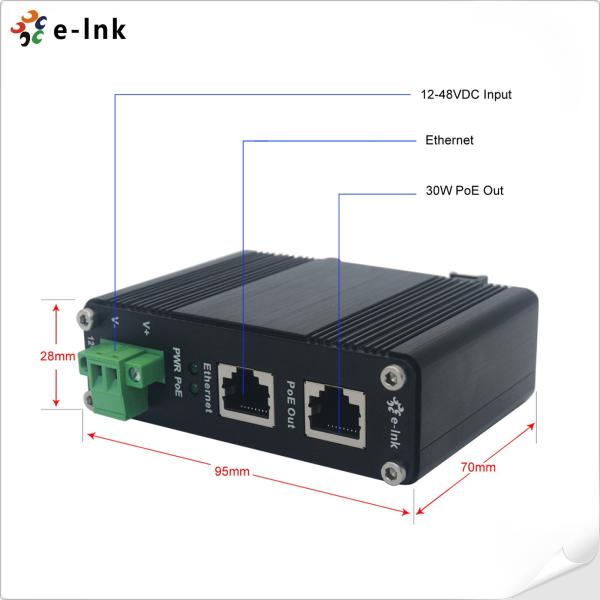

► Small Size 95 x 70 x 30 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

12~48V DC Power Input Industrial Gigabit PoE+ Injector Overview

The LNK-INJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

12~48V DC Power Input Industrial Gigabit PoE+ Injector Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount


12~48V DC Power Input Industrial Gigabit PoE+ Injector ordering information

Model

Description

LNK-INJ301-30

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
