Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005GM
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
$19.9-399
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/month
Delivery Time :
3-6working days
Packaging Details :
Industrial PoE Switch standard export package
Power Over Ethernet :
IEEE 802.3af/at
Copper Ports :
4 Port 10/100T RJ45
Key Word :
Industrial PoE Switch
Data Transfer Rate :
10/100/1000Mbps
Din :
With DIN
Input Power :
Dual power 48~52V DC
Description

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Mini Industrial Managed 5-Port Gigabit Ethernet Switch Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC widane rge power input

► Supports WEB Management

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Overview

LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch

with 12~48V DC wide range power input. This managed industrial Ethernet switch is

designed to match the critical industrial standards. With reliable and simple operation against

vibration and shock, and wide operation temperature range, it could match a variety of harsh

environment. The switch complies with CE and FCC standards, and passed the 100% burning

test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an

economical solution for industrial Ethernet connections.

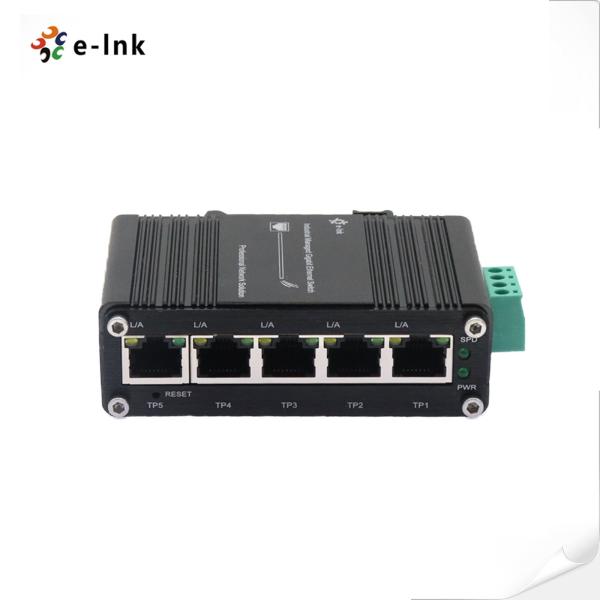

Mini Industrial 5-Port Gigabit Ethernet Switch Picture

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Technical Indexes

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3af/at Optional

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48V DC (Terminal Block)

Power Consumption:

<6W

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Reset Button

Support

Dimensions (WxDxH):

95 x 70 x 29 mm

Weight:

0.25KG

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

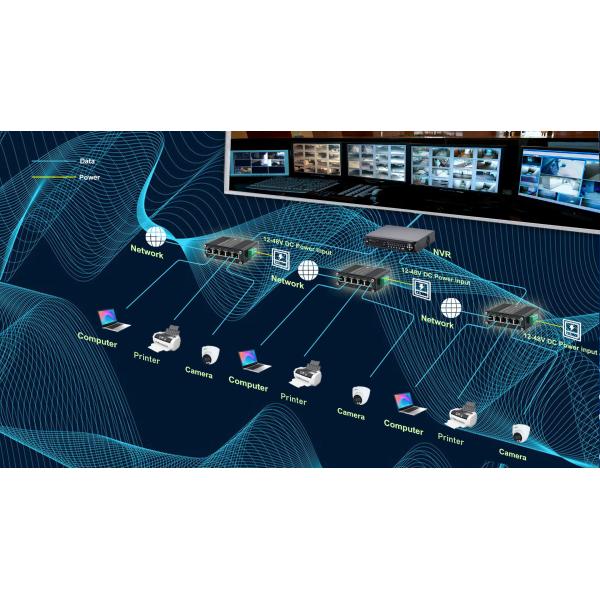

Application

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Ordering Information

Model

Description

LNK-IMC005GM

Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately

► Recommend MeanWell MDR-20-24
