DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-DEC110 Series
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Mode :
SMF
Insertion Loss :
<0.2dB
Network :
wifi, 4g, 3G
Telephone Ports :
1 telephone port RJ11 port
Polarity :
Type-B Cross
Directivity :
≥55dB
Pcb Dimensions :
12 cm x 6.9 cm
Description

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Advantage

· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)

· Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6

· Input Voltage: DC18V~48V (POE: DC48V).

· Support Power over Coax & Power over Ethernet at same time.

· 2pc BNC design, support to connect Max. 7 channels branch line

Overview

The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet

Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing

coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance

is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same

time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to

100Mbps. It has excellent lightning protection and Anti-interference.

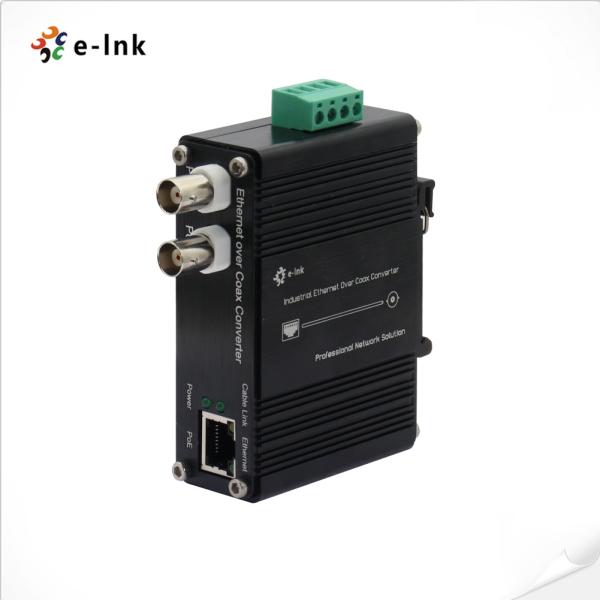

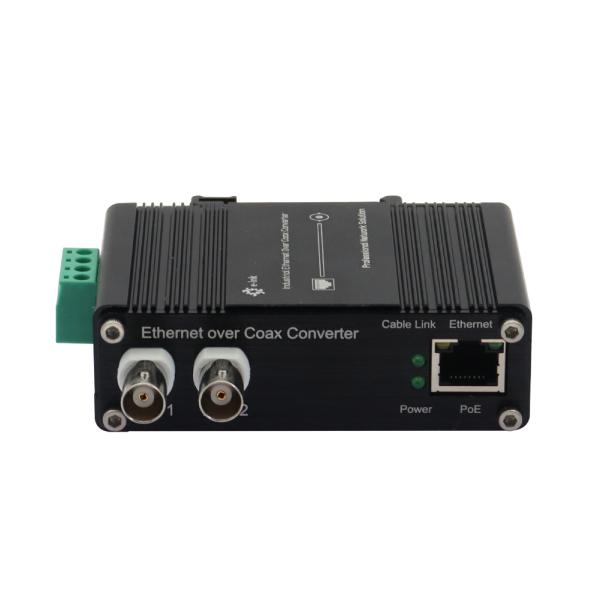

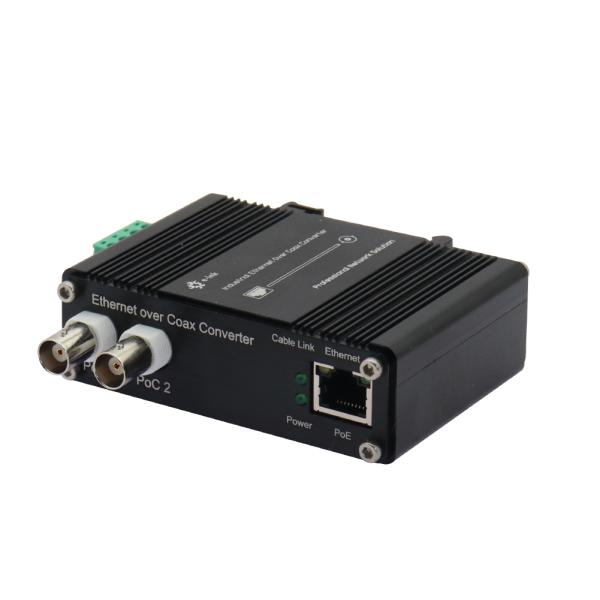

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Picture

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

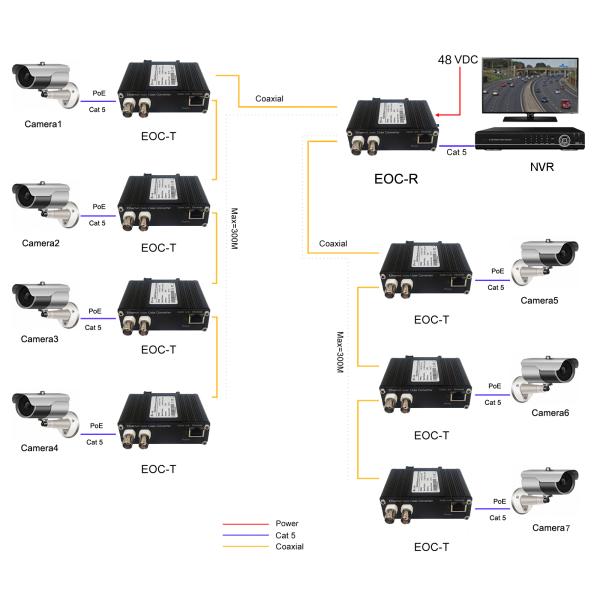

Application

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

Technical Indexes

Ethernet

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3af Power Over Ethernet

IEEE802.3at Power Over Ethernet

Cabling

10Base-T: Cat 3,4,5, or above

100Base-TX: Cat5 or above

Maximum Distance

Cat5UTP up to 100m

Connector

1 x RJ45

Coaxial

Cabling

Coaxial Cable (75 ohm)

Connector

1 BNC (female)

Distance

Up to 1200m (no PoE), 300m (with PoE)

Data Rate

Downlink (TX to RX)

90Mbps (Max.)

Uplink (RX to TX)

90Mbps (Max.)

Technology

Power Line Communication (PLC)

Protection

Reverse Polarity

Present

Electrical and Mechanical

Input Power

DC18V~48V (PoE: DC48V)

Power Consumption

8W Max. (PoC not in use)

60W Max. (Poc in use)

Ordering Information

Model

Description

LNK-DEC110-T/R

DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter

LNK-DEC110P-T/R

DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter
