16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
16G + 2SFP Unmanaged PoE Switch with PoE+
Specifications
Brand Name :
E-link
Model Number :
LNK-2016GP-SFP
Certification :
CE, FCC, Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days

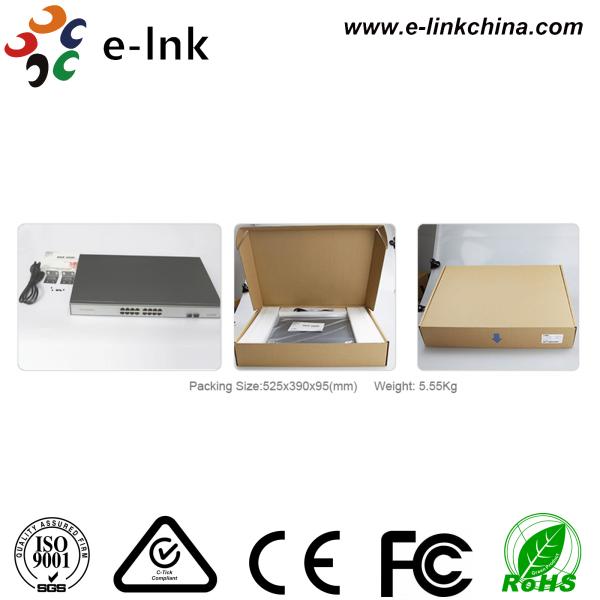

Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension (LxWxH) :
440 x 275 x 44.5mm
Operating Temperature: :
-20 ° ~ 55 ° C;
Transmission Distance :
Depend on SFP Modules
Warranty :
1 Year Warranty, Life-time Maintenance
Description

16G + 2SFP Unmanaged PoE Switch with PoE+

Product Advantages

· Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)

· Port1 to Port16 compatible with IEEE802.3at standard power Supply (Maximum power of each port is 25.5W)

· 16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 1000Mbps SFP fiber uplink ports

· Meets the standards of the IEEE 802.3at/ IEEE 802.3 10i and IEEE 802.3u/IEEE 802.3x standard

· The packet forwarding speed of the wire-speed port is 1.488Mbps

· Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)

· All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

Technical Indexes


Product Name

16G + 2SFP PoE Switch with 16 Gigabit PoE Ports 25.5W

Model

LNK-2016GP-SFP

Connector Type

16x 10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) + 2x 1000M SFP ports

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meters);

100BASE-TX: Cat5 or later UTP(≤100 meters);

1000BASE-TX: Cat5 or later UTP(≤100 meters);

Performance Specifications

Backplane Bandwidth: 52Gbps

Network Delay: less than 20 microsecond

Packet Buffer: 96KB

Address Database: 8K

MTBF: 190,000 hours (about 21 years)

PoE Description

IEEE 802.3at, each port power is 25.5W;

Port1 to Port16 support PoE power;

PoE Power

IEEE802.3at standard, each port power is 25.5W, total power is 440W

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.3at

LED Indicator Status

Power, Network, PoE working status

Power Input

AC 100-240V, 50/60HZ input

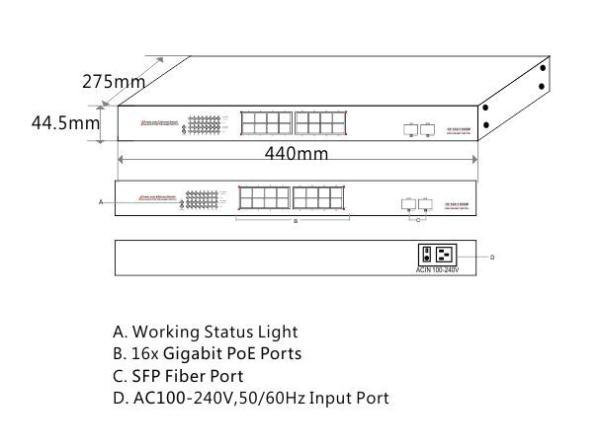

Dimension

Dimension (LxWxH): 440 x 275 x 44.5mm

PoE Ports

16 ports support PoE

PoE Port Power

25.5W per PoE port,

PoE Standard

IEEE 802.3at

Working Environment

Operating Temperature: -20 ° ~ 55 ° C;

Storage Temperature: -40 ° ~ 75 ° C;

Humidity: 10% ~ 90%, non-condensing;

Storage Humidity: 10% ~ 95%, non-condensing;

Working Altitude: 3000 m (10,000 ft);

Storage Altitude: 3,000 m (10,000 ft)

Certification

CE mark, commercial

FCC Part 15 Class B

VCCI Class B

EN 55022 (CISPR 22), Class B

Transmission Distance

Depend on SFP Modules

Warranty

1 Year Warranty, Life-time Maintenance

Overview

LNK-2016GP-SFP (16G + 2SFP) PoE Switch provide fast connection to servers or the backplane of the Gigabit speed. It features with PoE (Power Over Ethernet) function through different power levels of PoE power supply, that is it can supply the 48V DC power to the PD remote devices (e.g. IP Phone, WLAN AP, Security, Bluetooth AP etc.) via a network cable, in order that realizing the power supply for remote PD devices. As the power supply PSE (Power Sourcing Equipment) side device, which supports the standard IEEE802.3at power standard and single-port power is 25.5W.

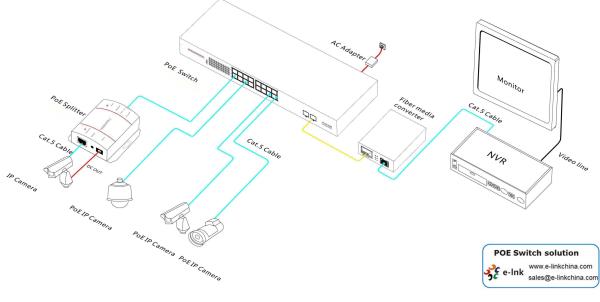

Application

16G + 2SFP Unmanaged PoE Switch with PoE+

Ordering Information

Model

Description

LNK-2016GP-SFP

16G + 2SFP Unmanaged PoE Switch with PoE+, port1 to port16 supports POE IEEE 802.3at international standard, each port power is 25.5W, the total power is 440W
