Specifications
Brand Name :
E-link
Model Number :
LNK-2412P-SFP
Certification :
CE, FCC, Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension (LxWxH) :
320mm*210mm*46mm
Operating Temperature: :
-20℃ to 55℃
weight :
N.W: 1.9KG G.W: 2.4KG
The warranty :
2 years
Description

24*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP Ethernet Switch

Product Advantages

► 24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1* Gigabit SFP Uplink Port

► Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward

► Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)

► Ethernet port supports 10/100M adaptive and POE functions

► Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard

► Support port auto flip (Auto MDI/MDIX)


Technical Indexes


Product name

24*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP Ethernet Switch

Model

LNK-2412P-SFP Series

Port

24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port

Network protocol

Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

POE parameter

PoE standard: IEEE802.3af /IEEE802.3at

Each port power:15.4 W (IEEE 802.3af)

Each port power:30 W (IEEE 802.3at)

PoE compatibility:IEEE 802.3af/at adaptive

POE output voltage: DC48~55V

POE power pin:1/2+; 3/6-

Network media

10Base-T: Cat3 or later UTP/STP(≤100m)

10Base-T: Cat6 or later UTP/STP(≤250m)

100Base-TX: Cat5 or later UTP/STP(≤100m)

1000BASE-TX: Cat5 or more UTP (≤100m)

Optical (SFP)

Multimode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km (depending on SFP module)

Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km (depending on SFP module)

Performance

Bandwidth: 10.8Gbps (non-blocking)

Packet forwarding rate: 8Mpps

Packet Buffer Memory: 1M

MAC address table: 2K

Forwarding mode

Store-and-forward

Power supply

Power input: AC100-240V 50/60Hz, Output: 52V5.76A

Power Budget

300W

Packaging list

1. Ethernet Switch:1 unit

2. User Guide:1 unit

3. Warranty Card:1 unit

4. Power Cord:1unit

5. 1U Rack Mount: 1 pair

MTBF

100000 hours

Warranty

2 years

Overview

The LNK-2412P-SFP PoE Switch with 24 Port 10/100M PoE + 2 Port Gigabit Ethernet Uplink + 1 Port Gigabit SFP Uplink Port, it’s using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

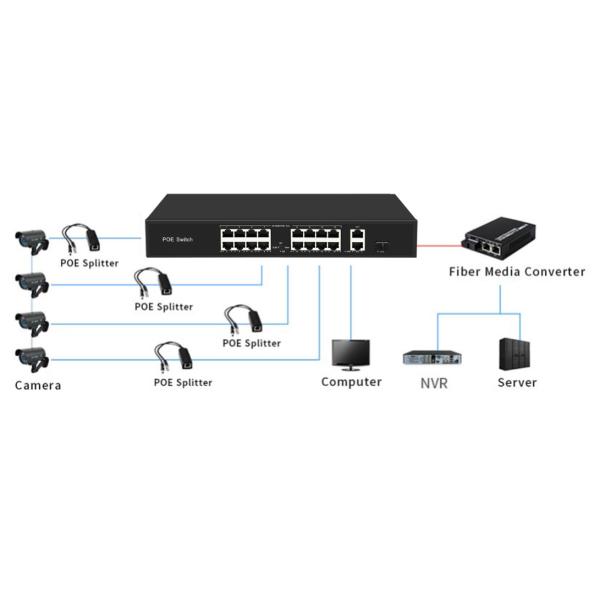

Application

24*10/100M PoE + 2*10/100/1000M Uplink RJ45 + 1*1000M Uplink SFP Ethernet Switch

Ordering Information

Model

Description

LNK-2412P-SFP

24*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports + 1*Gigabit SFP Uplink Port, support PoE power supply function, compatible with both IEEE802.3af / IEEE802.3at standard. PoE Power Output: 15.4W / 30W each port. Total power budget 300Watts. 1U Rack Mount installation
