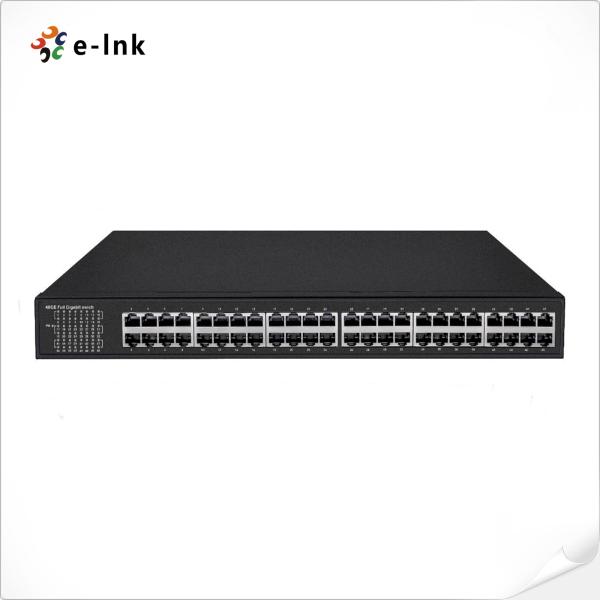

 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
 Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports
Specifications
Brand Name :
E-link
Model Number :
LNK-S5800P-48G
Certification :
CE, FCC, Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension (LxWxH) :
440mm*360mm*45mm
Installation :
mount
weight :
3.3kg/4kg
The warranty :
1 year warranty
Operating Temperature/Humidity :
-10～+55°C；5%～90% RH Non coagulation
Description

Unmanaged 48-Port Gigabit PoE Switch with 48x10/100/1000M RJ45 PoE Ports

Product Advantages

► IEEE 802.3af/at power on up to 48 ports

Port1-Port2; Support IEEE802.3af/at/PoE+=/BT

Port3-Port48; Support IEEE802.3af/at

► Supply power to wireless access points and surveillance cameras over Cat-5 cabling

► 48 10/100/1000 Mbps Ports with AutoUplink™

► Supports PoE power up to 15.4W/30W for each PoE port

► Supports PoE power up to 600W for all PoE ports

► Supports PoE IEEE 802.3af/at compliant PDs

► Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X

► Built-in Power Supply


Technical Indexes

Product Name

Unmanaged 48-Port Gigabit PoE Switch (Built-in Power Supply)

Ports

48x 10/100/1000M copper cable RJ45 PoE ports

(All ports support MDI/MDIX automatic adjustment)

Total power/Input voltage

MAX 600W (AC100-240V 50/60HZ)

Watt

Standby Power Consumption:≤20W；

LED Indicator

PWR:Power LED

1-48:(Link LED=10/100M Link,1000M=Gigabit Link)

Power Input

Built-in power AC:100～240V 50-60Hz 1A

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product size/Packing size(L*W*H)

440mm*360mm*45mm

553mm*403mm*95mm

N.W/G.W(kg)

3.3kg/4kg

Installation

Rack-mount(optional machine hanger spare parts)

Lightning protection level

3KV 8/20us；

IP30

Certificate

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty

1 year warranty

Overview

The LNK-S5800P-48G is an unmanaged 48-Port Gigabit PoE Switch with 48x 10/100/1000M RJ45 PoE Ports, and Each Port Supports IEEE 802.3af/at Standard.

To fulfill the demand of PoE for network applications with Gigabit speed transmission, the E-link PoE Gigabit Ethernet Switch LNK-S5800P-48G is an ideal solution. Each 10/100/1000Mbps port of LNK-S5800P-48G features IEEE 802.3af/at Power over Ethernet (PoE) that combines up to 600 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 600 Watts PoE budget on whole system.



Ordering Information

Model

Description

LNK-S5800P-48G

Unmanaged 48-Port Gigabit PoE Switch with 48x 10/100/1000M RJ45 PoE Ports, and Each Port Supports IEEE 802.3af/at Standard, Built-in Power Supply
