Specifications
Brand Name :
E-link
Model Number :
LNK-GE-USB-PD
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimensions (WxDxH): :
95 x 70 x 30 mm
Weight :
0.25Kg
Mounting Options: :

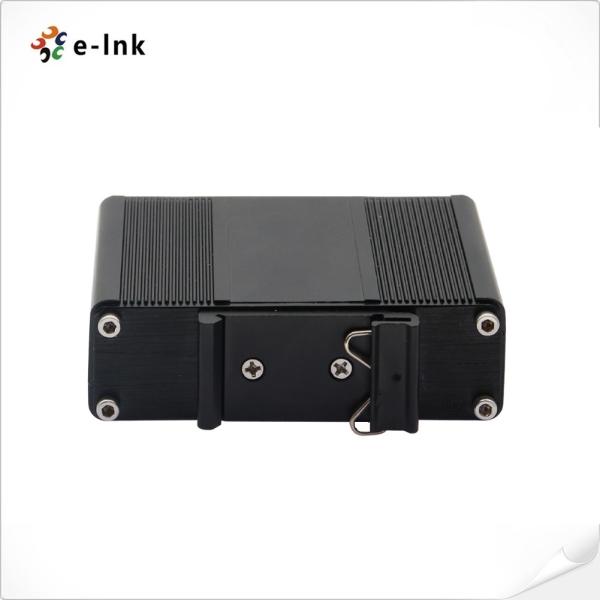

DIN-Rail / Wall-mount
Operating Temperature: :
-40°C to 75°C (-40°F to 167°F)
Description

Mini Industrial Gigabit Ethernet PD Switch with Type-C Output

Product Advantages

► Supported standard: USB 2.0/3.0, USB PD 2.0, IEEE 802.3 10Base-T /100Base-TX / 1000Base-T, IEEE 802.3u 100Base-FX, IEEE 802.3z 1000Base-X, IEEE 802.3bt, IEEE 802.3at

► USB PD 3.0 charging protocol compatible

► 1x Type-C USB 3.0 port

► 1x 10/100/1000M RJ-45 port

► 1x PoE PD 10/100/1000M RJ-45 port

► 1x 100Base-FX / 1000Base-X auto detection SFP port

► Supports DIN-Rail and Wall-mount installation

Technical Indexe

Ethernet

USB Port

-USB 2.0

-USB 3.0

-USB PD 2.0

-USB PD 3.0 compatible

Interface

Ethernet Port:

2 x RJ45

USB Port:

1 x Type-C

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

USB PD Charging Protocol:

5V/9V/12V/15V/20V (Max 3.0A, 60W)

LED Indicators:

USB

USB Status

FX L/A:

Data LINK Status

SPD

SPD Status

PWR:

Power Status

SFP Port

Link/act and speed

Pin Polarity

1/2, 3/6 & 4/5, 7/8 (non-polarity)

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS



Overview

The LNK-GE-USB-PD product is Mini Industrial PD Ethernet Switch with Type-C Output. This switch offers a flexible connection method for a Type-C USB powered device to join in network through RJ-45 port or optical fiber interface.

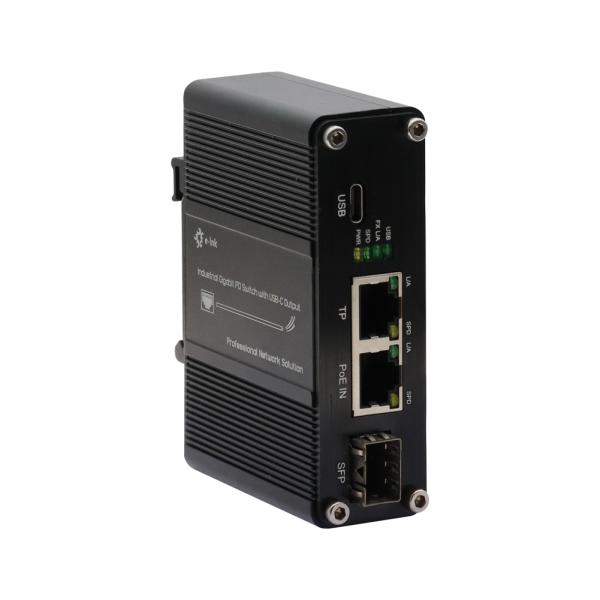

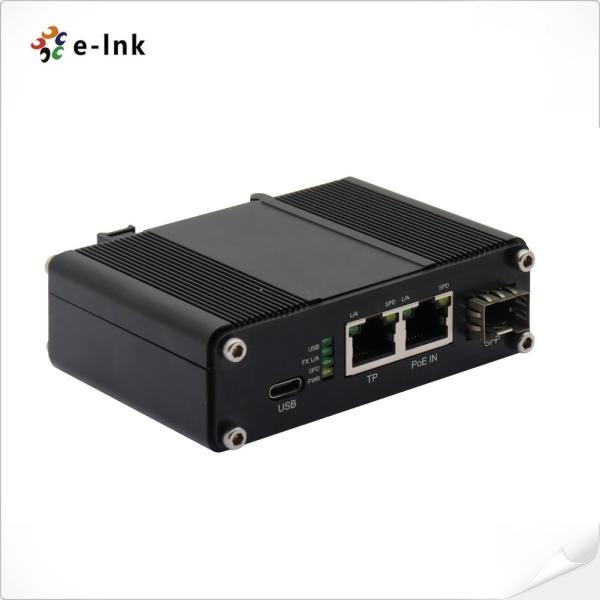

This switch is combined with 1 x Type-C USB 3.0 port, 2 x 10/100/1000M RJ-45 ports and 1 x 100/1000M SFP port. The“PoE IN”RJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE switch or PoE injector, so the switch can work without additional power supply.

Application

Mini Industrial Gigabit Ethernet PD Switch with Type-C Output

Ordering Information

Model

Description

LNK-GE-USB-PD

Mini Industrial Gigabit Ethernet PD Switch with Type-C Output

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
