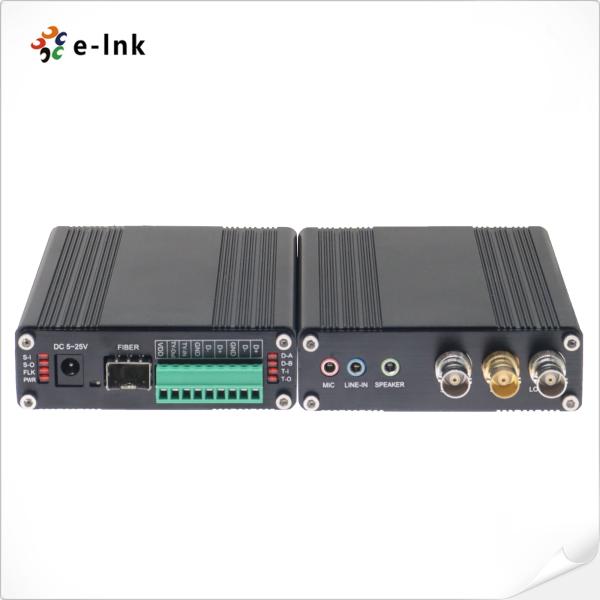

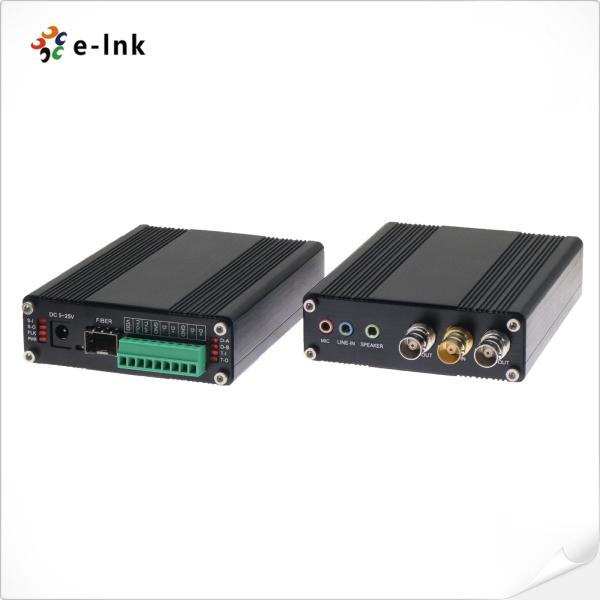

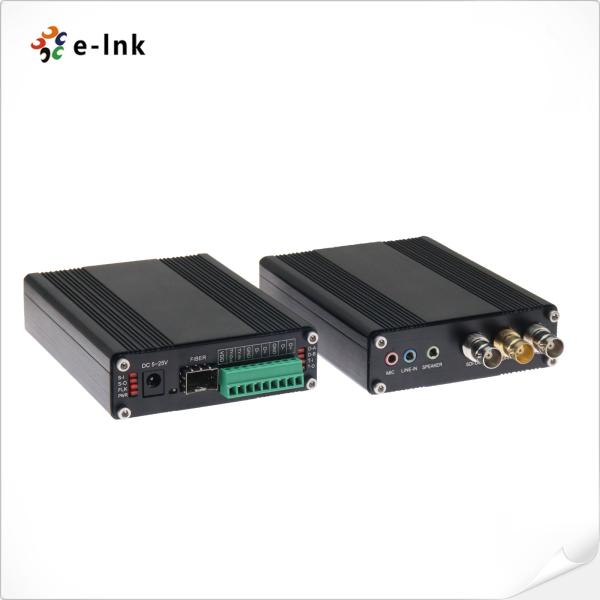

1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-3G-1BV1T2BD2A1M
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimensions :
120 x 105 x 28 mm
Weight :
1.1KG/pair
Operating Temperature: :
-20℃～+70℃
Transmission distance :
0-20Km
Mounting Options :
Wall-mount
Fiber interface :
Simplex LC
Description

1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter

Product Advantages

► 1Ch Bidirectional 3G-SDI Video with Loop-out

► 1Ch Tally Signal

► 2Ch Bidirectional RS485 or RS422 Data

► 2Ch Stereo Audio

► 1Ch Microphone

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Support HDTV 720P, 1080I, 1080P, 1920*1080@60Hz

► Long transmission capability up to 20km (SMF)

► Hot swap and hot plug;

► Fully digital non-compression broadcast level transmission;

industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

0-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

Stereo Audio or Microphone

Audio input and output

3.5MM Audio

Audio format

@48KHz

Electrical

Power adaptor

DC 5~25V

Power consumption

<5W

LED Indicator

P/S

Power Supply

DAT

Data

Mechanical

Dimensions (LxWxH)

120 x 105 x 28 mm

Weight

1.5KG/pair

Casing

Aluminum Case

Mounting Options

Wall-mount

Environmental

Working Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

Overview

LNK-3G-1BV1T2BD2A1M Series 3G/HD-SDI Fiber Converter supports 1-channel Bidirectional 3G/HD-SDI Video (audio embedded) with Loop-out, 1-channel Tally, 2-channel Bidirectional RS485 or RS422 data, 2-channel external Stereo Audio, and 1-channel Microphone signal transmitted via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

Ordering Information

Model

Description

LNK-3G-1BV1T2BD2A1M

1Ch Bidirectional 3G-SDI with Loop + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs
