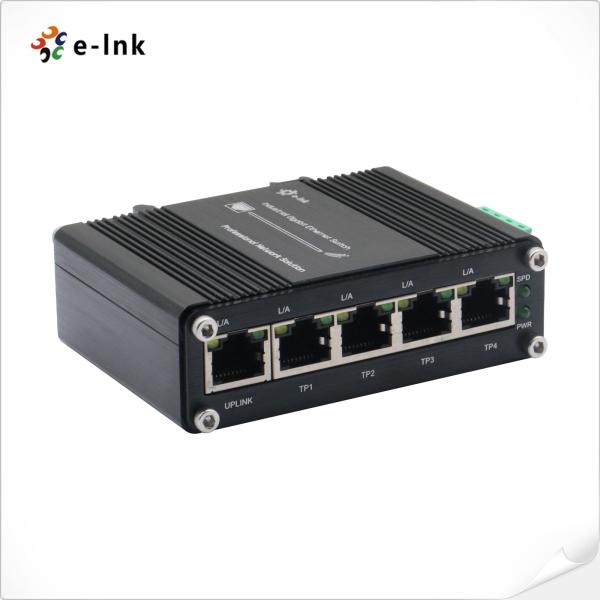

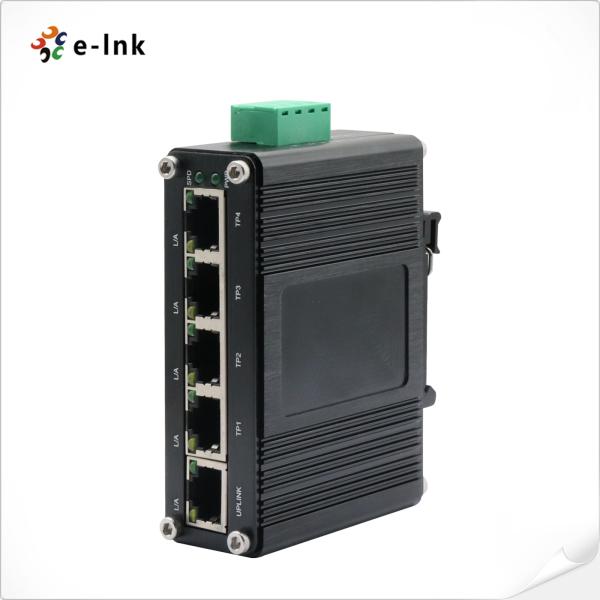

Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005G
Certification :
ISO9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pc
Price :
US$19.9
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
Industrial Managed Ethernet Switch Standard Carton Packaging
MAC Address Table :
8K
Switch Fabric :
10Gbps/non-blocking
Connector :
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Input Power :
12~48VDC (Terminal Block)
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Dimensions (WxDxH) :
95 x 70x 29mm
Description

Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M

12-48VDC PoE Optional

Overview

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC

wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical

industrial standards. With reliable and simple operation against vibration and shock, and wide operation

temperature range, it could match a variety of harshenvironment. The switch complies with CE and FCC

standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.

It is a good choice for an economical solution for industrial Ethernet connections.

Features

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► PoE Optional

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af/at Optional
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps
Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W (PoE In Use: <125W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Application

Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M 12-48VDC PoE Optional

Ordering information

Model Description
LNK-IMC005G Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
