Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-90
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Industrial PoE Extender
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Protection Level :
IP 40
Weight :
0.25Kg
Dimensions (WxDxH) :
95 x 70 x 30 mm
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender Advantages

► 10/100/1000Mbps Ethernet Ports

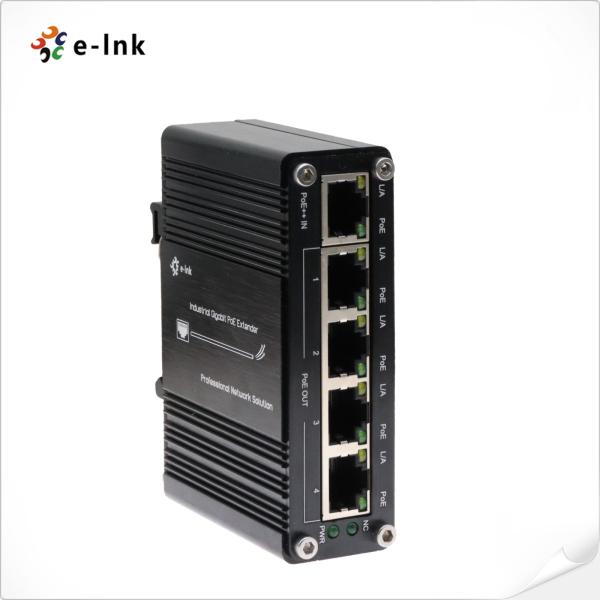

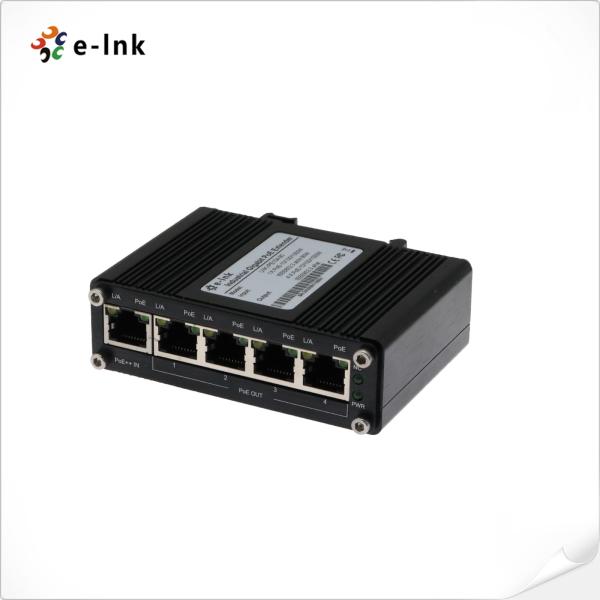

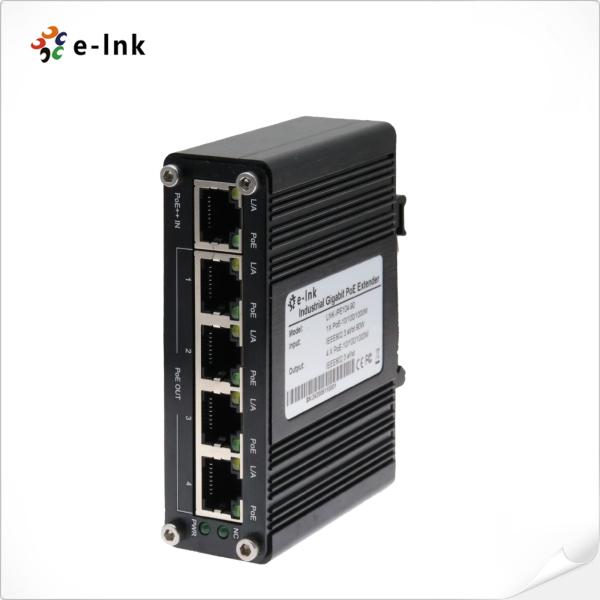

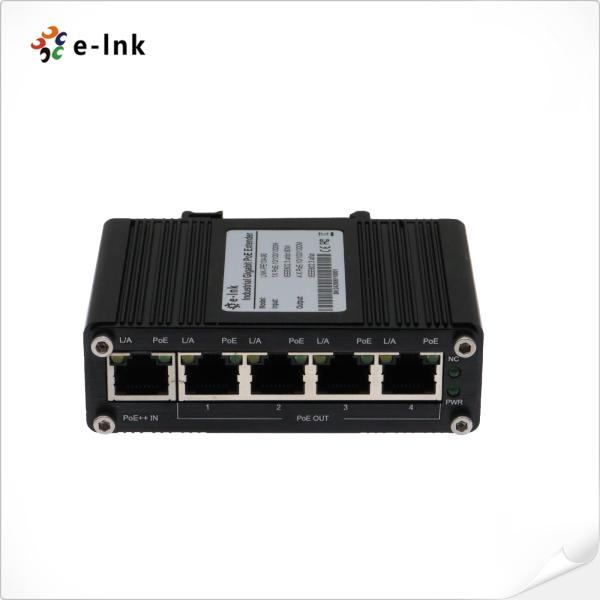

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices

► Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

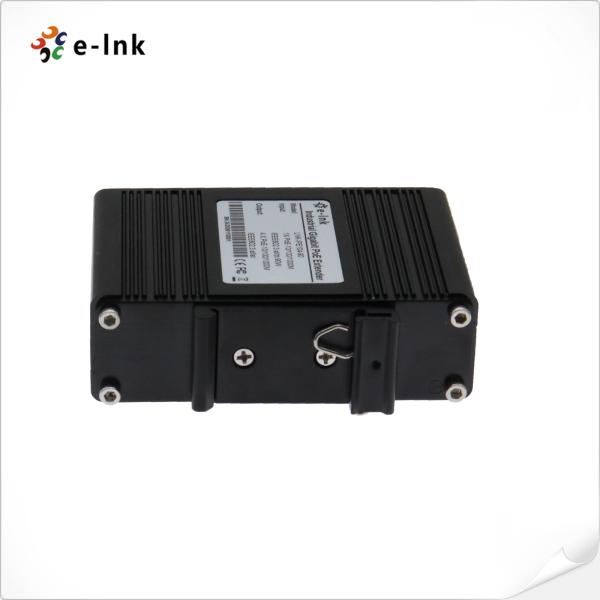

► Support DIN-Rail & Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender Overview

LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender Technical Indexes

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender ordering information

Model

Description

LNK-IPE104-90

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
