Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC010G
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
$19.9-399
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Input Power :
12~48VDC
Connector :
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Power Consumption: :
<10W
Dimensions (WxDxH): :
95 x 88 x 46mm
Weight :
300g
Casing :
Aluminum Case
Description

Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC

Industrial Ethernet Switch Advantages

  • 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
  • 12~48VDC wide range power input
  • Supports 802.3x Flow control
  • Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports DIN-Rail and Wall-mount installation
  • Industry standard design, dustproof and close design IP40, rugged high-strength metal case
  • -40°C to 80°C (-40°F to 176°F) operating temperature

Specifications

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Connector: 10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power:

12~48VDC

Redundant power with polarity reverses protection function
Power Consumption: <10W
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 88 x 46mm
Weight: 300g
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

Overview

LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC

wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical

industrial standards. With reliable and simple operation against vibration and shock, and wide operation

temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC

standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.

It is a good choice for an economical solution for industrial Ethernet connections.

Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC

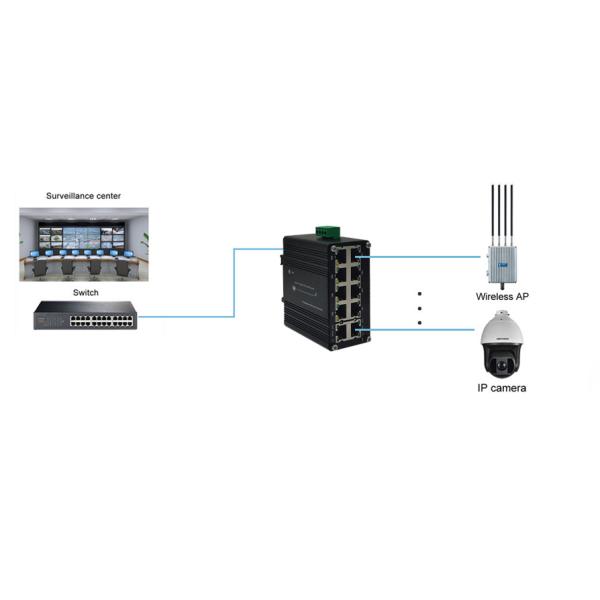

Application

Mini Industrial 10-Port 10/100/1000T RJ45 Compact Ethernet Switch 12~48VDC

Order Information

Model Description
LNK-IMC010G Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
