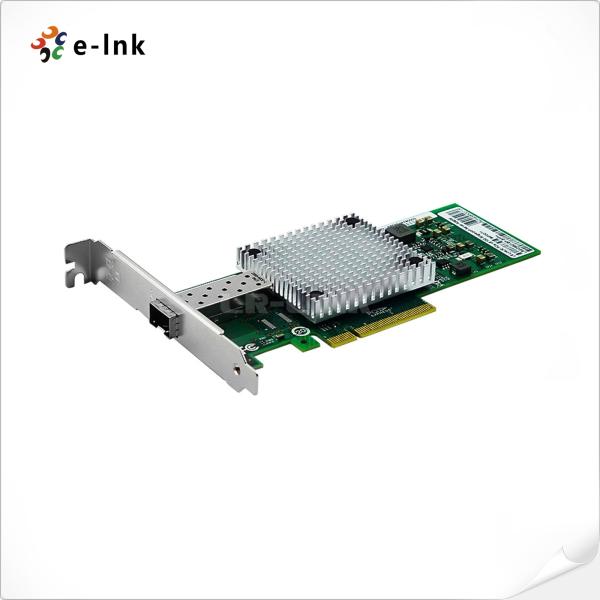

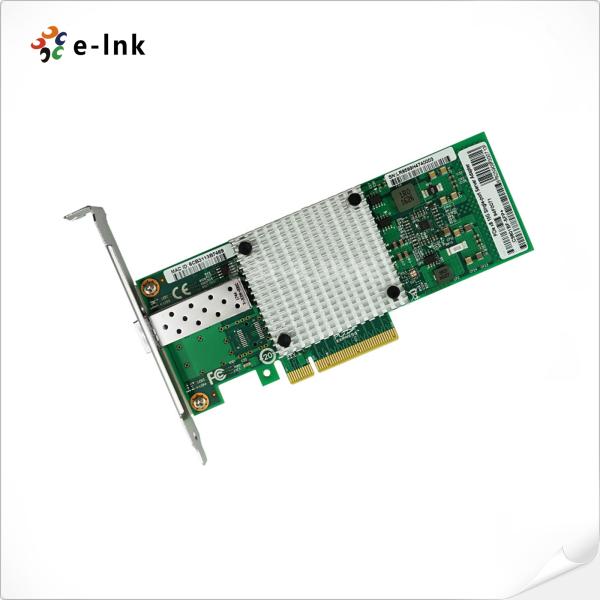

PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
Specifications
Brand Name :
E-link
Model Number :
LNK-C9801BF-SFP+
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature :
0°C to 55°C (32°F to 131°F)
Optical Port: :
1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC)
Network Virtualization :
FCoe, DPDK
Transmission rate :
10Gbe
Controller :
Intel 82599
Description

PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)


Product Advantages

► General Intel® 82599 10 Gigabit Ethernet Controller

► PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes

► Industry standard SFP+ fiber port

► PXE, iSCSI remote boot support

► Network Virtualization

► Support IEEE 802.1Q VLAN

► Low profile and full-height bracket

► Load balancing on multiple CPUs

► Fiber Channel over Ethernet (FCoE) Support

► Support for most network operating systems (NOS)

► Intel® PROSet Utility for Windows* Device Manager

► Time Sync (IEEE 1588, 802.1as)


Technical Indexes

Networking

Standards:

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5G/5GBASE-T

IEEE 802.3an 10GBASE-T

IEEE 802.3ae 10Gbps Ethernet

IEEE 802.3x full-duplex flow control

PCI-E 1.0 complaint

NOS Software Support:

Windows 7 32-bit (64-bit)

Windows 8 32-bit (64-bit)

Windows 8.1 32-bit (64-bit)

Windows 10 32-bit (64-bit)

Windows Server 2003 32-bit (64-bit)

Windows Server 2008 32-bit (64-bit)

Windows Server 2008 R2 32-bit (64-bit)

Windows Server 2012 32-bit (64-bit)

Windows Server 2012 R2 32-bit (64-bit)

Linux kernel 2.6.30 or greater (x86_64) (w/ SR- IOV support)

FreeBSD 7.2 or laster

Linux RHEL 5.6

Linux RHEL 6.x

Linux SLES 11 Sp1

Linux SLES 10 Sp4

OS Independent

DOS NDIS 2

DOS ODI EFI 1.1

UEFI 2.1

Vmware ESX 4.02

Vmware ESX 4.02

VMware Workstation

Controller:

Intel 82599

Transmission rate

10Gbe

Network Virtualization

FCoe, DPDK

Interface

Optical Port:

1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC)

LED Indicators

Link/ACT

LED: off = No Link; on = Link; Green Blinking = Activity

Environmental

Operating Temperature:

0°C to 55°C (32°F to 131°F)

Storage Temperature:

-25°C to 70°C (-13°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

Manageability Features

l Preboot eXecution Environment (PXE) Support

l Simple Network Management Protocol (SNMP)

l Remote Network Monitoring (RMON) Statistic Counters

l iSCSI Boot

l Watchdog Timer

Overview

LNK-C9801BF-SFP+10G Server Adapters with SFP+ connectivity is the most flexible and scalable ethernet adapters to meet the demands of today’s data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High-Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.


Orderinng Information


Model

Description

LNK-C9801BF-SFP+

Intel 82599 PCIe x8 10Gbps Single Port Fiber Server Adapter (1x SFP+), not including SFP+ modules
