Specifications
Brand Name :
E-link
Model Number :
LNK-4KDVI-2240
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Fiber Optic Extender
Operating Temperature :
-32° to +122° F. (0° to +50° C)
Dimensions (WxDxH) :
89mm x 104 mm x 28.3 mm
Weight :
0.25Kg
Power Consumption :
250W
Limited Warranty :
2 year warranty
Description

5U Rack Mount 4K DVI KVM Fiber Optic Extender

5U Rack Mount 4K DVI KVM Fiber Optic Extender Advantages

· Support 5U rack

· Supports DVI 1.0 and HDMI v1.4

· Supports resolutions up to 3840*2160/30p, 4096x2160/30p, 3840*2160/60P(YCbCr 420), 4096*2160/60P(YCbCr 420)

· Supports 3840*2160/30p resolution with color depth up to 24 bits/pixel

· Supports bit-rates up to 3.4 Gbps/color,10.2 Gbps total

· HDCP 1.4 compliant

· Support 3D TV pass-through

· CEC are NOT supported!

· Support EDID pass-through

· LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

· Built-in EQ(Receiver)

· Up to 300m distance by OM3-300(Custom Available)

· Low RFI / EMI profile for sensitive applications

· Surface-mountable

5U Rack Mount 4K DVI KVM Fiber Optic Extender Overview

DVI (High-Definition Multimedia Interface) recently has become increasingly popular in the application of video and audio transmission system. In view of the extreme of electrical performances, however, the traditional copper wire cable imposes limits on signal transmission distance and signal quality. In reality, optical fiber is of low dispersion, which in turn has the strength of longer signal transmission distance and better signal transmission quality in comparison to the traditional copper wire cable. DVI extender uses 2 cores fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

5U Rack Mount 4K DVI KVM Fiber Optic Extender Technical Indexes

Performance

Compliance

DVI1.0 / HDMI v1.4

Maximum Pixel Clock Frequency

340 MHz

Maximum Video Bit Rate

3.40 Gbps

Supported Color Depth

24-bit

Supported Resolutions

1920x1080/60p,3840x2160/30p, 4096x2160/30p,

3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420)

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

DVI Input / DVI Output

1x DVI 24+1 Female connector

Optical

1x SFP+ port

Cable

Fiber Cable Type / Max. Length

50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters)

Extended function

KM Support

USB Keyboard x 1 / USB Mouse x1

CEC Support

CEC are NOT supported!

DDC Support

EDID Pass-through Support

only 300 meters

HDCP Pass-through Support

only 300 meters

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

89mm x 104 mm x 28.3 mm

Net Weight

LNK-4KDVI-2240-S: 200 g LNK-4KDVI-2240-R: 200 g


5U Rack Mount 4K DVI KVM Fiber Optic Extender Ordering Information

Item

Description

LNK-4KDVI-2240

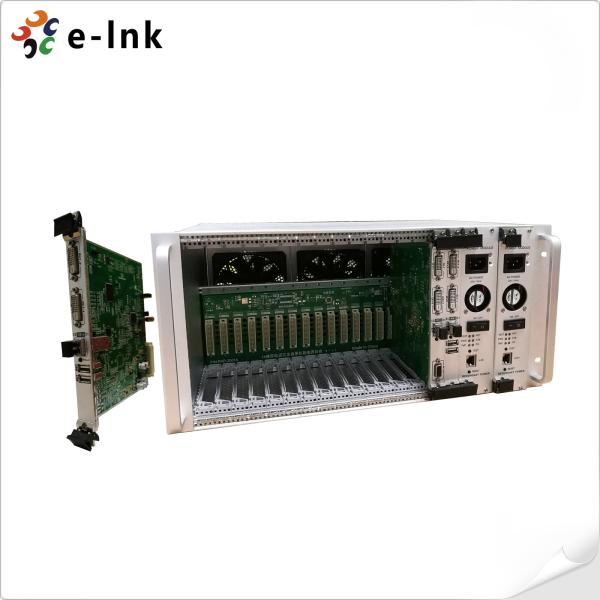

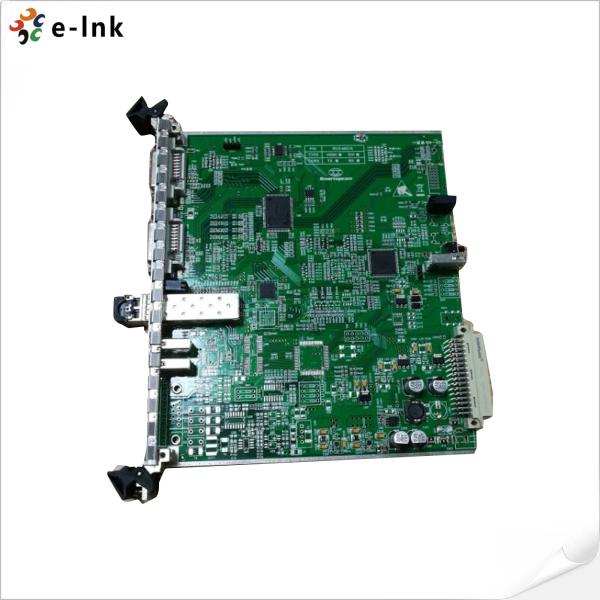

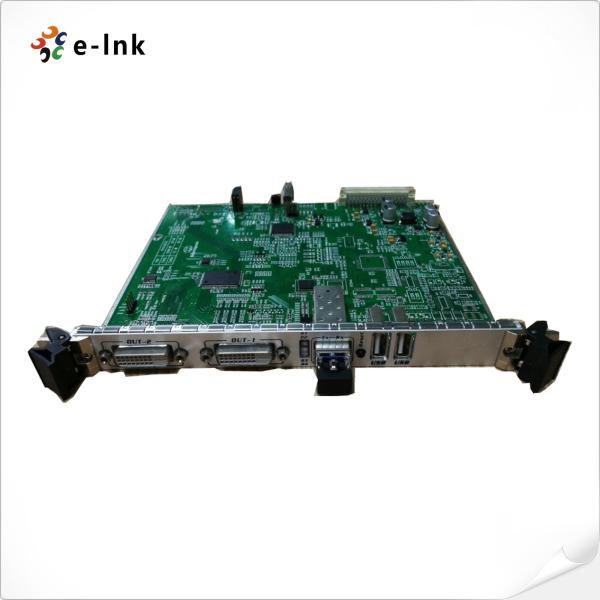

Card Type 4K DVI KVM Fiber Optic Extender with KVM, including 1 sender & 1 receiver, used by pairs

LNK-5U-DVI

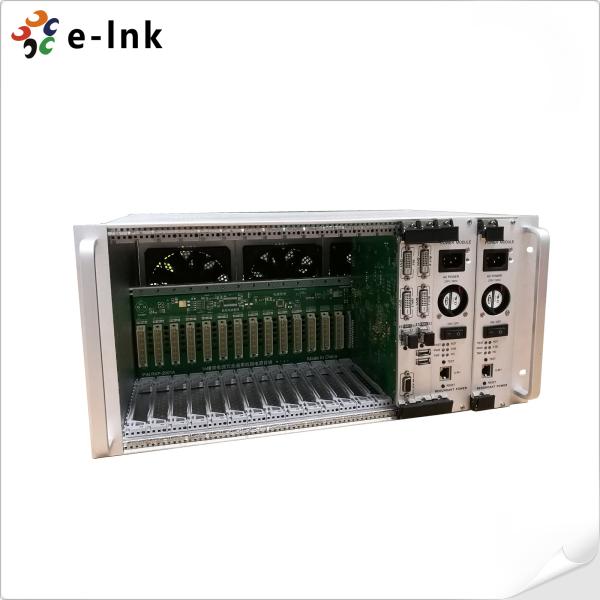

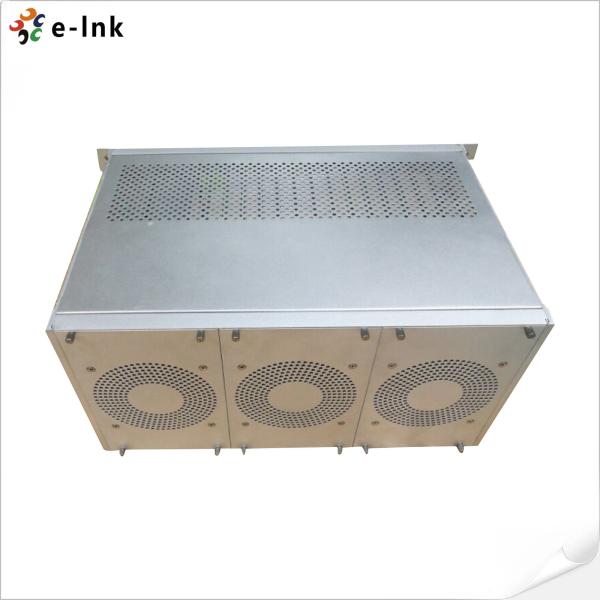

16-slot 5U Rack for 4K DVI KVM Fiber Extender
