Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
Specifications
Brand Name :
E-Link
Model Number :
ETH-IMC2424MP
Certification :
ISO9001，ROHS，FCC，CE
Place of Origin :
China
MOQ :
1 pcs
Price :
US$369~US$389/Pcs
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
4000 Pcs/Month
Delivery Time :
3-5 Working Days
Packaging Details :
Ethernet Switch standard export package
Input Power :
48~57VDC, Redundant Power (6-pin Terminal Block)
Weight :
3.5Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Casing :
Aluminum Case
MTBF :
> 200,000 hrs
Packet Buffer MemoryOptical PortPacket Buffer Memory :
12M bits
Optical Port :
4 x 1000Base-X SFP
USB-C :
1 x USB-C (for Management)
Description

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Features

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP + 1xRS485

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports 1U 19” Rackmount installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Overview

ETH-IMC2424MP Series is the L2+ managed rackmount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3p QoS

IEEE802.1d Spanning Tree

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

10K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

15W Max.(PoE in Use<720W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3 (to be upgraded)

250m PoE Network

ON - Enabled

OFF - Disabled

SW 4 (to be upgraded)

PoE Reset

ON - Enabled

OFF - Disabled

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE

PoE Status (T1~T24)

Fiber:

Gigabit SFP Port: F1~F4

Dimensions (L x W x H):

440mm x 300mm x 45mm

Mounting Options:

Rackmount


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Ordering Information

Model

Description

ETH-IMC2424MP

Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Rackmount Installation

Power Options

► Industrial Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

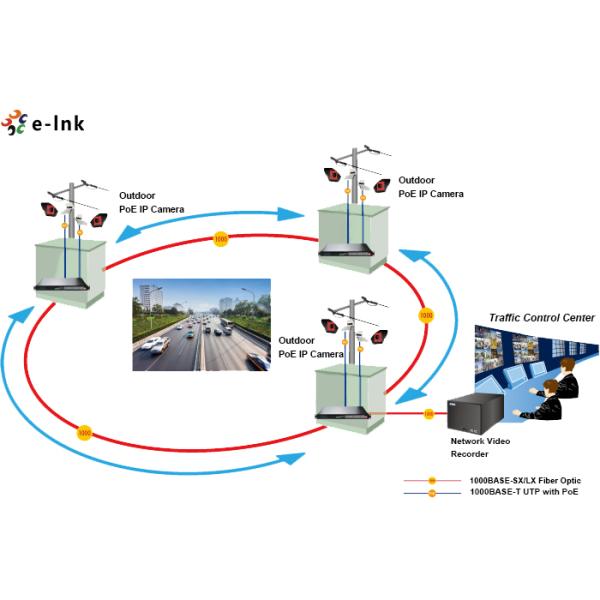

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case Application piture

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case pitures

Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case


Industrial L2 Managed Ethernet Switch 24 ports Rackmount IP40 Aluminum Case
