Specifications
Brand Name :
E-Link
Model Number :
ETH-IMC2408M
Certification :
ISO9001，ROHS，FCC，CE
Place of Origin :
China
MOQ :
1 pcs
Price :
US$349~US$369/Pcs
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
4000 Pcs/Month
Delivery Time :
3-5 Working Days
Packaging Details :
Ethernet Switch standard export package
Input Power :
12~48V DC, Redundant Power (6-pin Terminal Block)
Weight :
0.55Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Casing :
Aluminum Case
MTBF :
> 200,000 hrs
Packet Buffer MemoryOptical PortPacket Buffer Memory :
12M bits
Optical Port :
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
USB-C :
1 x USB-C (for Management)
Description

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case


Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Features

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Overview

ETH-IMC2408M Series is the managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.


Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Technical Indexes

RS485 Serial Interface (Optional)

Physical interface

Industrial standard 3-pin screw terminal

Data type

1Ch RS485 Bi-Direction

RS-485 signals

Data+, Data-, GND

Serial port line distance (copper)

1000 meters

Baud rate

0 ~ 800kbps

Electrical and Mechanical

Input Power:

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<240W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

DIP

Function

Settings

SW 1

VLAN

ON - Enabled

OFF - Disabled

SW 2

Ring Management

ON - Enabled

OFF - Disabled

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

Fiber:

Gigabit SFP Port: F9~F12

10G SFP+ Port: F13, F14

Dimensions (WxDxH):

149 x 114 x 50 mm

Mounting Options:

DIN-Rail mount

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Ordering Information

Model

Description

ETH-IMC2408M

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

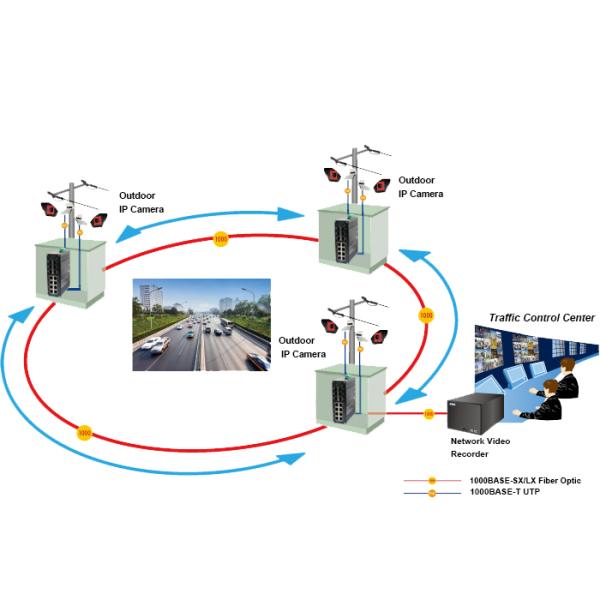

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Application Picture


Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case


Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Pictures

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case
