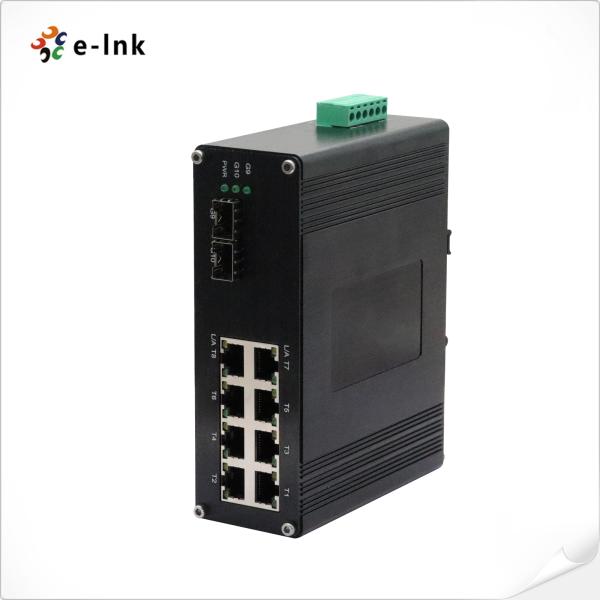

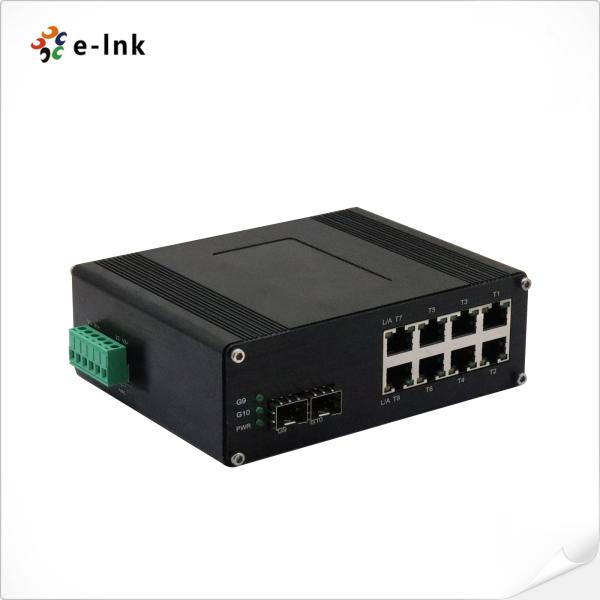

Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC208-2.5G-SFP+
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Storage Temperature: :
-40°C to 85°C (-40°F to 185°F)
Power Consumption: :
5W Max.
Power Input Overload: :
Automatic Resettable
Dimensions (WxDxH): :
150 x 115 x 50 mm
Weight: :
0.6Kg
Description

Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP

+ BASE-FX Ethernet Switch

Advantage

► 8x10/100/1000M/2.5GBase-TX + 2x1.25G/2.5G/10G SFP+ Base-FX

► 10/100/1000M/2.5Gbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC208-2.5G-SFP+ is 8 ports 10/100/1000M/2.5G Base-TX + 2 port 1.25G/2.5G/10G SFP

+ Base-FX Hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. TP (RJ45) supports

10/100/1000M/2.5G Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; SFP supports

1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a

great choice for integrating networks consisting of network devices such as IP cameras and wireless

access points between remote locations.


Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch

Technical Indexes

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48V DC, Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1, FX2

Dimensions (WxDxH):

150 x 115 x 50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail

Application

Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch

Ordering Information

Model

Description

LNK-IMC208-2.5G-SFP+

Industrial 8-port 10/100/1000M/2.5G BASE-TX + 2-port 1.25G/2.5G/10G SFP+ BASE-FX Ethernet Switch

SFP Options

► SFP+ module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
