Specifications
Brand Name :
E-link
Model Number :
LNK-4KDP12-1A1R
Place of Origin :
China
MOQ :
1pair
Price :
510-520USD/pair
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
1000pairs/month
Delivery Time :
5-8 working day
Packaging Details :
Fiber Extender standard export package
Input voltage :
DC 5V
Maximum power :
10W
Operating Temperature :
-25 ℃ to +55 ℃ (typical value 25 ℃)
Operating Humidity :
20% to 90%
Description

DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender

Audio and Video Fiber Extender Advantages

► Support audio and video synchronization to extend output

► The transmitter has a loop output interface (sharing local signals) and external audio embedding function

► The receiver has a backup output interface and audio stripping output function

► Supports RS-232 transparent transmission and EDID management learning, with simple and convenient control

► Video resolution up to 4K2K@50 /60Hz; 7680* 2160@30Hz 4: 4:4 transmission

► HDMI audio format: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,DTS-EX, DTS-96/24, DTS

High Res, DTS-HD Master Audio, DSD

► Compliant with HDMI 2.0b, HDCP 2.2 and DVI 1.0 specifications

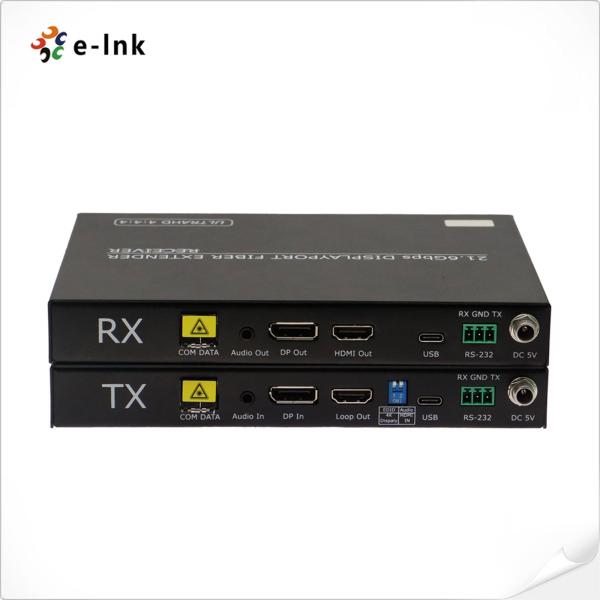

Audio and Video Fiber Extender Picture

DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender

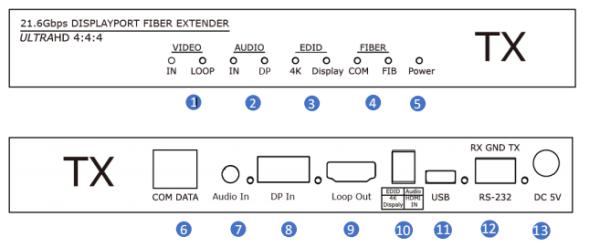

Audio and Video Fiber Extender Technical Indexes

Transmitter Interface standard

1 × DP1.2 input (4K@60Hz)

1 x HDMI 2.0 loop out (4K@60Hz)

1 x Audio input

2 × LC optical fiber

1 × RS232
Receiver Interface standard

1 × DP1.2 output (4K@60Hz )

1 x HDMI 2.0 output (4K@60Hz)

1 x Audio output

2 × LC optical fiber

1 × RS232

Video Resolution

 DP

SMPTE: 720p | 1080p | 2160p

VESA: 800x600|1024x768|1280x720|1280x800| 1280x960|1280x1024|1400x1050|1600x1200| 1920x1080 1920x1200|

2048x1152|2560x1600|3840x1080|3840x2160| 4096x2160|7680x2160|7680x1080|3840*2400 |7680*1200|2160*4096

Support custom non-standard resolution
refresh rate 23.98/24/25/29.97/30/50/59.94/60Hz

Supported Standards

 DP 1.2,1.1
HDMI 1.3,1.4,2.0
Input voltage DC 5V
Maximum power 10W
Operating Temperature -25 ℃ to +55 ℃ (typical value 25 ℃)
Operating Humidity 20% to 90%
Weigh

1.0kg (Equipment weight)

1.5kg (Transportation weight)
Dimensions (L x W x H)

315mm x 290mm x 20mm (equipment size)

330mm x 295mm x 25mm (shipping dimensions)

Audio and Video Fiber Extender Application

DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender

Audio and Video Fiber Extender Ordering Information

Model Description
LNK-4KDP12-1A1R DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender, Single mode Dual fiber, LC, 10KM
