Specifications
Brand Name :
E-link
Model Number :
LNK-MHRA4K
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Fiber Extender
Operating Temperature :
-10 to + 60°C

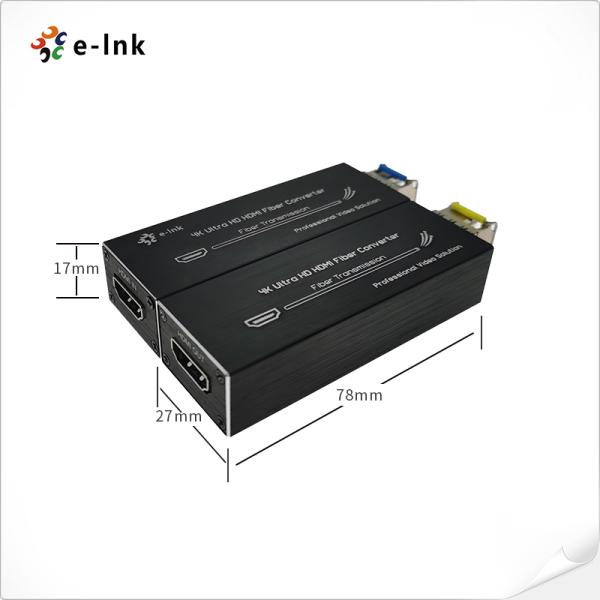

Dimension (LxWxH) :
3.07 x 1.06 x 0.69in (78x27x17mm)
Humidity :
5% to 90% RH (non-condensing)
Weight :
50g / 0.11 lb
Power Supply :
5V DC (USB-C)
Power dissipation :
<5W
Safety Approvals :
CE, FCC, Rohs
Description

Micro Mini 4K HDMI Fiber Extender

Micro Mini 4K HDMI Fiber Extender Advantages

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmit up to 80km over fiber cable

► Supports all modes up to 4K*2K@30Hz Resolution

► USB-C Connector for Power Input

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~60°C

Micro Mini 4K HDMI Fiber Extender Overview

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.


Micro Mini 4K HDMI Fiber Extender Technical Indexes

Type of Extender

Fiber Transmitter for HDMI signal over Optical Fiber Cable

Input Signals

HDMI

Connector

Female HDMI type A

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Color space 420, 400

Dynamic EDID

Plug & Play, no need to learn

Fiber Connector

SFP/LC

Bandwidth

10.3Gbps

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 to + 60°C

Storage Temperature

-20 to + 85°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

3.07 x 1.06 x 0.69in (78x27x17mm)

Weight

50g / 0.11 lb

Power Supply

5V DC (USB-C)

Power dissipation

<5W

Safety Approvals

CE, FCC, RoHS

Micro Mini 4K HDMI Fiber Extender Ordering Information

Model

Description

LNK-MH4K-MM

Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S20

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S40

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-80

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S80

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
