1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
1080P HDMI KVM Fiber Optic Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-1240KVM
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Fiber Extender
Operating Temperature :
-32° to +122° F. (-0° to +50° C)
Dimension (LxWxH) :
89mm x 104 mm x 28.3 mm
Weight :
200 g
Power Consumption :
3 watts
The warranty :
2 year warranty
Description

1080P HDMI KVM Fiber Optic Extender

1080P HDMI KVM Fiber Optic Extender Advantages

► Real Time Transmission, HDCP 1.2 compliant

► Supports DVI 1.0 and HDMI v1.3

► Supports resolutions up to1920*1080/60P

► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel

► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!

► Support USB Keyboard and USB Mouse

► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

► Built-in EQ(Receiver), Plug and Play, Surface-mountable

► Up to 300m distance by OM3-300(Custom Available)

► Low RFI / EMI profile for sensitive applications

1080P HDMI KVM Fiber Optic Extender Overview

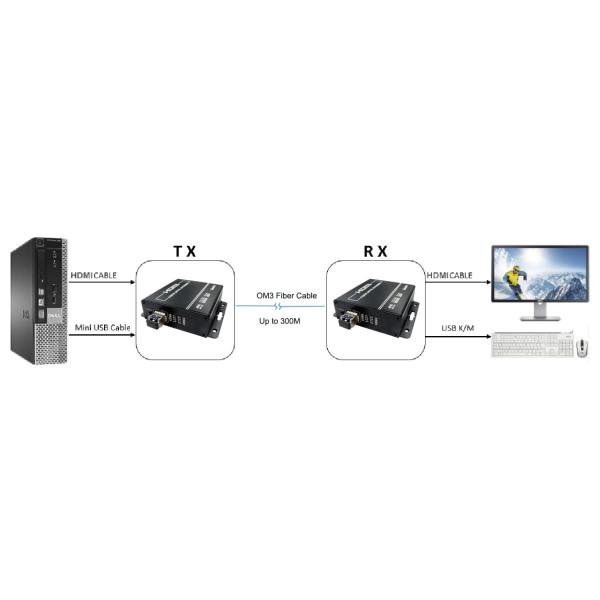

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).


1080P HDMI KVM Fiber Optic Extender Technical Indexes


Performance

Compliance

HDMI v1.3

Maximum Pixel Clock Frequency

225 MHz

Maximum Video Bit Rate

2.25 Gbps

Supported Color Depth

24-bit

Supported Resolutions

1920x1080/60P

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

Description

HDMI Input / Output

1x HDMI Type-A Female connector

Optical

1x SFP+ port

Cable

Fiber Cable Type / Max. Length

50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters)

9/125μ Single Mode Fiber: ≤ 10KM

Extended function

KM Support

USB Keyboard x 1 / USB Mouse x1

CEC Support

CEC are NOT supported!

DDC Support

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

89mm x 104 mm x 28.3 mm

Net Weight

200 g

Environmental

Operating Temperature

-32° to +122° F. (-0° to +50° C)

Storage Temperature

-40° to +185° F. (-40° to +85° C)

Operating Humidity

5% to 80% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

Power Requirements

External AC Power Adapter

Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A

Power Consumption

3 watts

Warranty

Limited Warranty

2 year warranty

1080P HDMI KVM Fiber Optic Extender Ordering Information


Model

Description

LNK-1240KVM -T

1080P HDMI KVM Fiber Optic Extender Transmitter

LNK-1240KVM -R

1080P HDMI KVM Fiber Optic Extender Receiver
