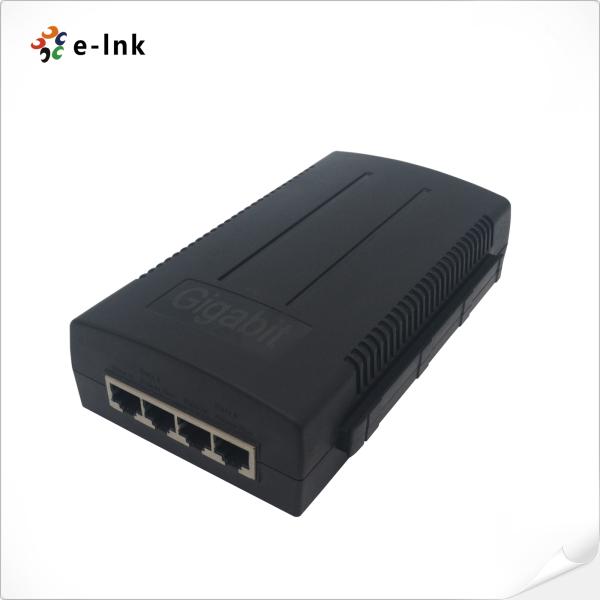

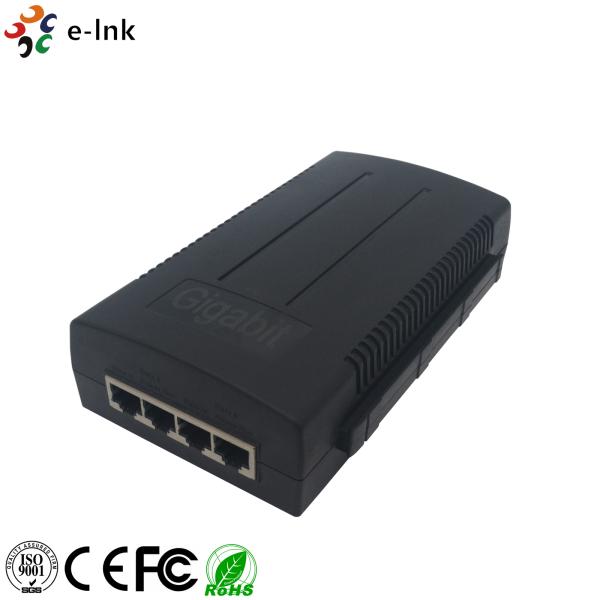

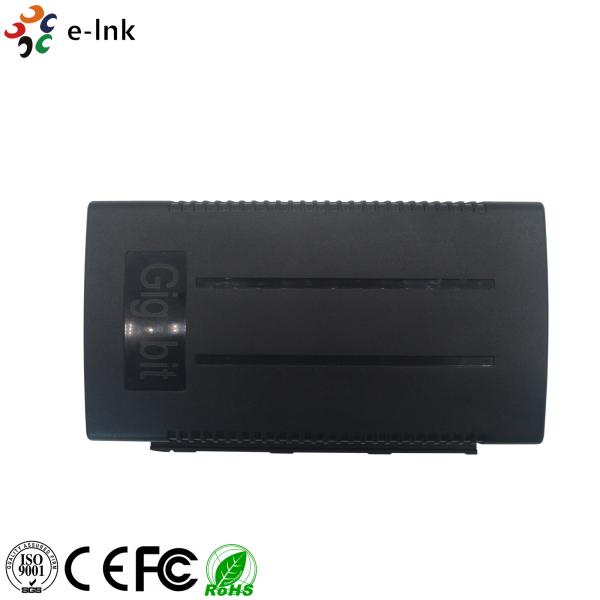

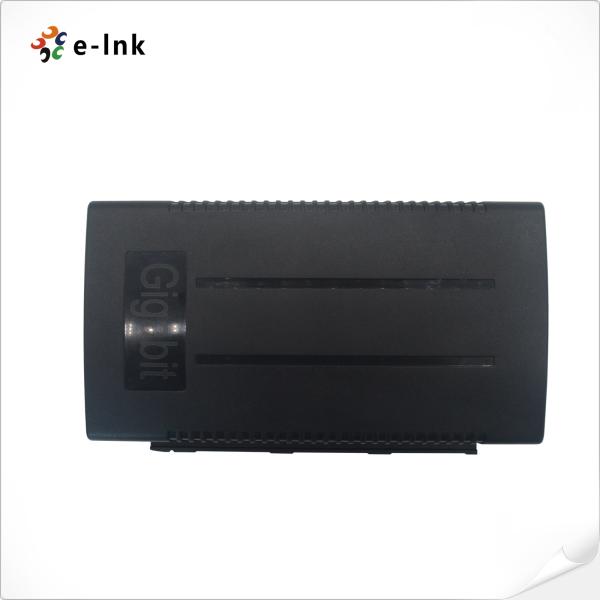

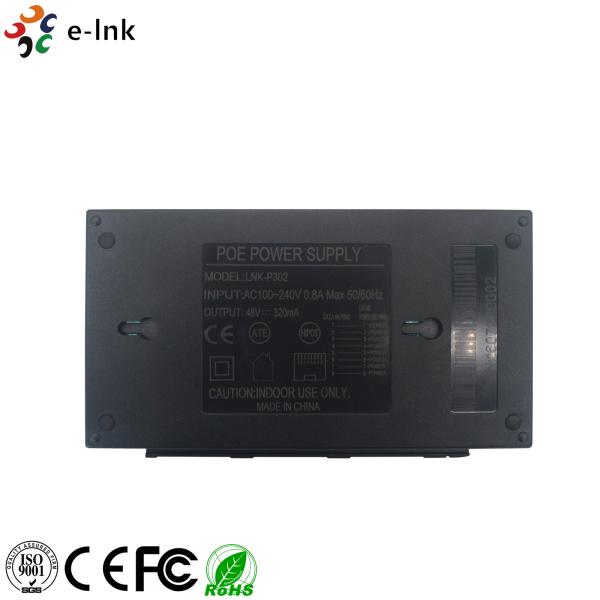

2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
2-Port POE Adapter/Injector
Specifications
Brand Name :
E-link
Model Number :
LNK-POE202
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Humidity :
Max. 95% RH(non-condensing)
Weight :
250g
Dimension :
170*98*42mm (H×D×W)
Operating Temperature: :
0 to +40°C,
Output Power :
15.4W Max IEEE802.3af，15.4W Max IEEE802.3af 30W Max IEEE802.3at
Input Power :
AC100-240V
Description

HD-SDI Video Extender over CAT5 / 6 Kit

Product Advantages

· Up to 15.4W/25.5W of PoE Power

· Fully IEEE802.3af/IEEE802.3at compliant

· Supports 10/100M or 10/100/1000M LAN environment

· Plug & Play

· No configuration required

· Reduced Installation cost

· Safe and Reliable Power to WLAN Access Points

· Automatic Detection and Protection of Non–standard Ethernet Terminals

Overview

The LNK-POE202/LNK-POE302 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.


Technical Indexes

Parameter

Specifications

Features

• Conforms to IEEE802.3af standard RJ-45

• Conforms to IEEE802.3af standard RJ-45

• Data Input Interface RJ-45 10/100Base-TX/

• Data Input Interface RJ-45 10/100/1000Base-TX

• Output Port Power Cable Included

Data Rate

10/100Mbps

10/100/1000Mbps

Input Power

AC100-240V

Output Power

15.4W Max IEEE802.3af

30W Max IEEE802.3at

Wiring

• Data provide over pairs 1/2(+) and 3/6(-)

• Power over spare pairs 4/5(+) and 7/8(-)

Output type

Single outputa

2*RJ45 connector ---POE

2*RJ45 connector ----LAN

LED Display

YES

Operating Temperature

0 to +40°C,

Humidity

Max. 95% RH(non-condensing)

Dimension

170*98*42mm (H×D×W)

Weight

250g



Ordering Information

Model

Decription

LNK-POE202

2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W

LNK-POE202AT

2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W

LNK-POE302

2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W

LNK-POE302AT

2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
