Specifications
Brand Name :
E-link
Model Number :
LNK-HC100
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature: :
-10º~50º C
Housing Material / Net Weight(each) :
Aluminum/61g
Power consumption :
DC12V/1W
Dimension :
87.5(L)x33(W)x22(H)mm
Weight :
160g
Power Input :
DC12V/0.07A
Description

HDMI Extenders over Single RG6 Coaxial Cable up to 100m/328ft Support IR Remote Control

Product Advantages

· Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)

· Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps

· Embedded surge protection cables

· Light Aluminum Housing, Easy to carry and install

Overview

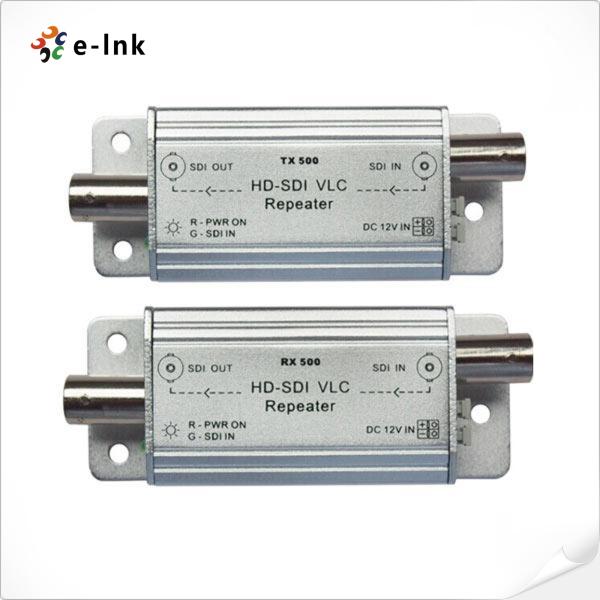

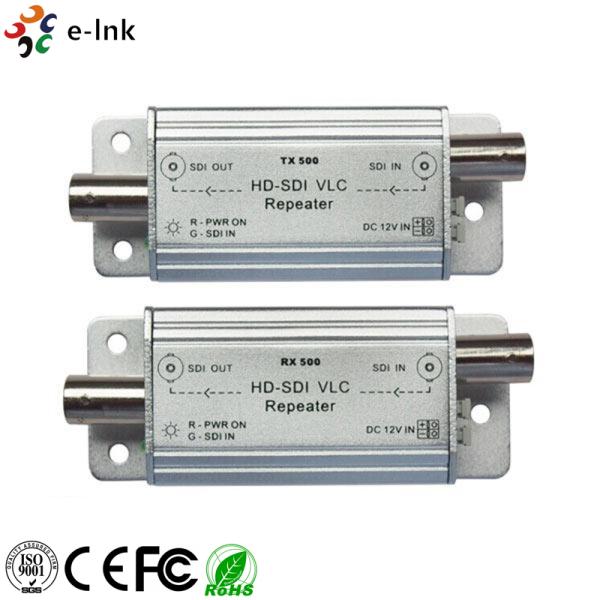

E-link LNK-TX500 is to apply for signal transmitting terminal. LNK-Rx500 is to apply for receiving terminal. LNK-TX500 & LNK-TX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.

Technical Indexes


Model No.

LNK-SDI-TX500 & LNK-RX500

Input / Output Signal Type

HD-SDI

Power Consumption

DC12V/1W

Power Input

DC12V/0.07A

Max Distance of Each Pair

RG-6(Belden 1694A)-400m(Full SD:270M)

Connect Info

SDI Signal Joint BNC-F(75Ω)
Power input joint DC Female (5.5*2.1)

LED Instruction

Green OFF: HD-SDI input

Red ON: Power input

Operation Temperature / Humidity

-10-50

Housing Material / Net Weight(each)

Aluminum/61g

Gross Weight(pair)

160g

Dimension(MM)

87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale package)

HD-SDI Signal Standards

SD-SDI

HD-SDI

3G-SDI

(SMPTE 259M)

(SMPTE 292M)

(SMPTE 424M)

525i

1280x720P, 24/25/30/50/60HZ

1920x1080P, 50/60HZ

625i

1920x1080i, 50/60HZ

1920x1080P, 24/25/30HZ

3. Product Components with connect Diagram

1) LNK-TX500 SDI Input: Input 1.5Gbps HD-SDI signal; RX500 SDI Input: Input 270Mbps SD-SDI signal

2) LNK-TX500 SDI Output: Output 270Mbps SD-SDI signal via encoder RX500 SDI Output: Output SDI signal data of 1.5Gbps via decoder

3) Power & HD-SDI input with LED instruction (Green, Red)

4) DC female connector: connect with power adaptor of 12V-/-10%

LED Color

LED Status

Conditions

Green

ON

No HD-SDI signal input

Red

ON

Power is connected
