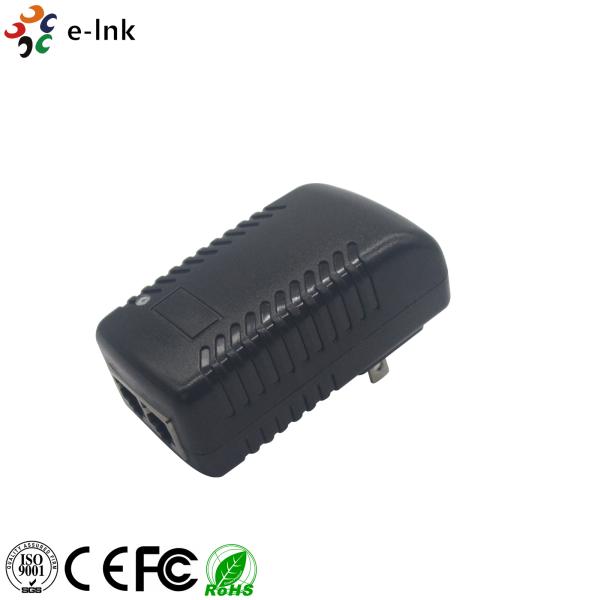

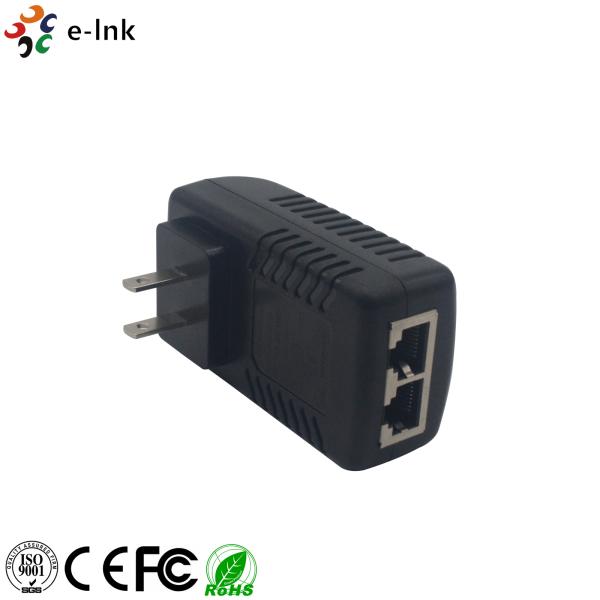

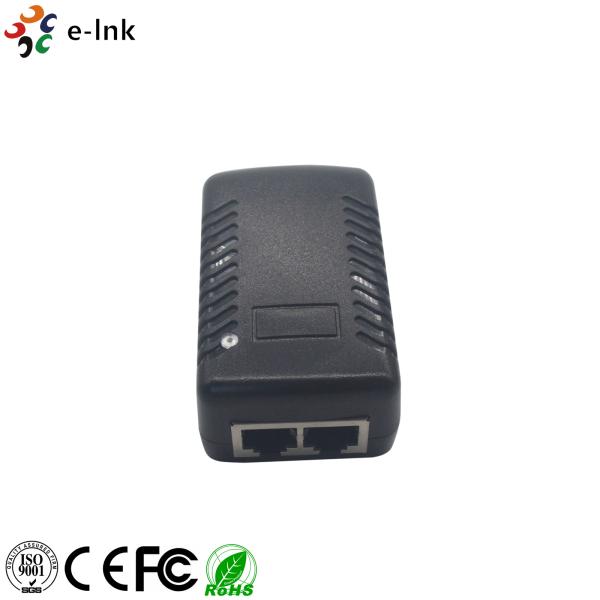

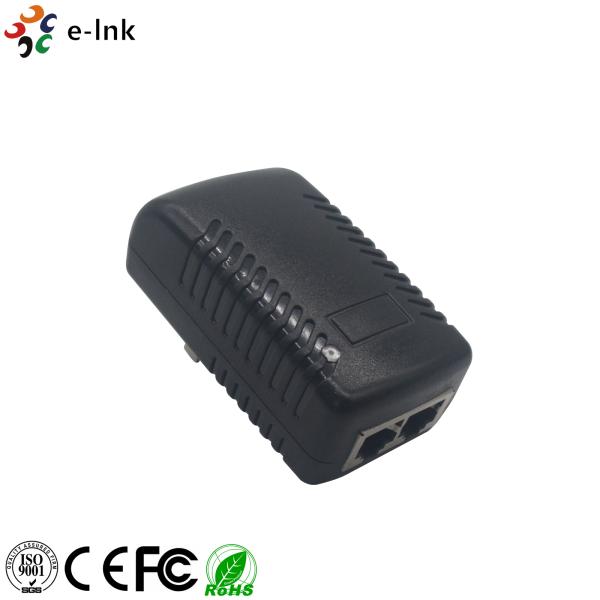

24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
24VDC@2A 48W POE Adapter/Injector
Specifications
Brand Name :
E-link
Model Number :
LNK-POE-24-48W
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature: :
0~55℃
Operating Humidity : :
90% ,No condensation;
Case :
Metal Case
 Safety standard :
CE/LVD
Description

24VDC@2A 48W POE Adapter/Injector

Product Advantages

· Up to 48W of PoE Power

· Supports 10/100M or 10/100/1000M LAN environment

· Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)

· 1 x 10/100Mbps or 10/100/1000Mbps Auto-MDIX Data In port

· 1 x 10/100Mbps or 10/100/1000Mbps PoE Auto-MDIX Data Out port

· Power port

· Power LED indicator

Overview

The LNK-POE-24-48W & LNK-24-48W series Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.


Technical Indexes

Ethernet power supply (POE)

POE characteristic

*PoE Power(max):30W

*one port support POE power supply

Power supply way

*Spare Part to 4/5(+), 7/8(-)

*Data Part to 1/2(+), 3/6(-)

Port and Performance

Port

2 Ethernet front-end ports

Port parameters

*Electrical interface : RJ45

*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level

Transmission rate

LNK-POE-24-48W: 10/100Mbps

LNK-POE-24-48W-G: 10/100/1000Mbps

Protocol standard

*IEEE802.3 i 10 BASE-T;

*IEEE802.3 u 100 BASE-TX;

*IEEE 802.3ab Gigabit Ethernet

*IEEE802.3 x Flow Control;

LED indicator

Every port : rate, link indicator

Environment and Specification

Environment condition

*Operating Temperature :0~55℃; Storage Temperature : -20~70℃

*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation

Safety standard

CE/LVD

Other Characteristic

Input Power

110-220V AC

Output Voltage

24VDC @ 2A

Electromagnetic compatibility

*CE Class B

*FCC Part 15 , Class B

*VCCI Class B

*C-Tick


Ordering Information

Model

Description

LNK-POE-24-48W

PoE Adapter, 10/100Mbps, 24VDC @ 1.25A Output Voltage,

30W PoE Power, Input Power 110-220V AC

LNK-POE-24-48W-G

PoE Adapter, 10/100/1000Mbps, 24VDC @ 1.25A Output Voltage,

30W PoE Power, Input Power 110-220V AC
