1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-KVM-HDMI-1D1BA1GO
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Fiber Extender
Dimensions (WxDxH) :
148*115*28mm
Operating Temperature :
-5℃ ~ +70℃
Power supply :
The power adapter: DC 12V/1A
Power dissipation :
MAX 6W
The warranty :
1-year warranty
Description

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender Advantages


► Transmits HDMI video signals up to 20km over one fiber optic cable;

► Support video resolution up to 1920*1080P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio bi-directional transmission;

► Support RS232 signal unidirectional transmission, baud rate can be up to 460,800bps;

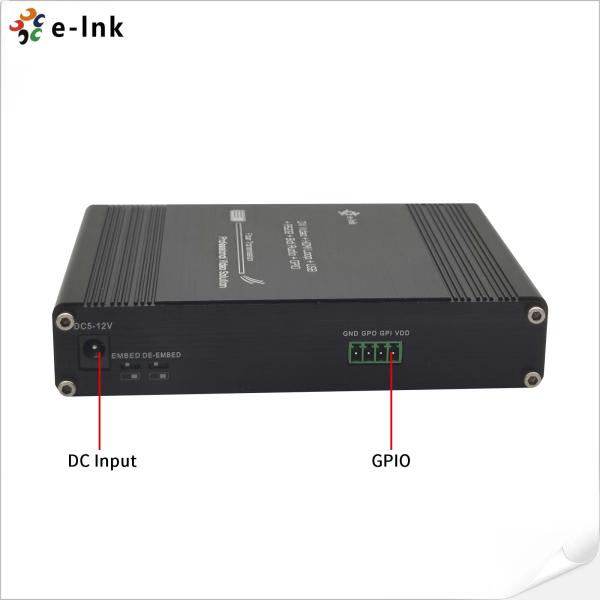

► Support general-purpose input/output (GPIO) signal;

► Support HDMI loop out

► Auto EDID can be disabled via DIP switch

► Compliance with HDMI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play


1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender Overview

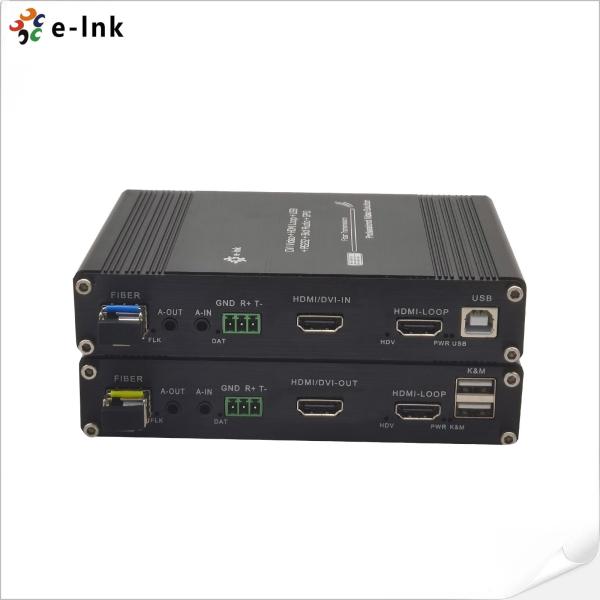

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender Technical Indexes

Parameter

Description

Video

Standards

HDMI V1.3

Maximum pixel clock

165MHz

Maximum data rate

2.97Gbps

Resolution

1920*1080@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz

Connector

HDMI

Impedance

100Ω

Audio

Interface

3.5mm earphone seat

Signal type

Stereo

K/M

Interface

To PC: MINI-USB

To keyboard and mouse: USB-A

GPIO

Interface

Industrial terminal

RS232

Interface

Industrial terminal

Signal direction

Unidirectional

Baud rate

Self-adaptive, Max: 460,800bps

Data bits

8

Optical fiber

Interface

LC connector

Fiber type

Single-mode single fiber

Wavelength

Single-mode 1310nm

Interface bandwidth

3Gbps

Transmission distance

standard 20km

Other

Power supply

The power adapter: DC 12V/1A

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension (LxWxH)

148*115*28mm

The warranty

1-year warranty

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender Ordering information



Model

Description

LNK-KVM-HDMI-1D1BA1GO

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM

LNK-HDMI-1D1BA

1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM



1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender
