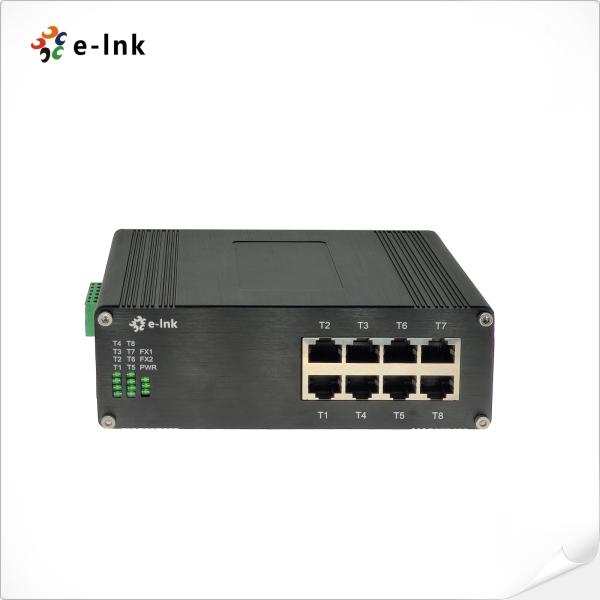

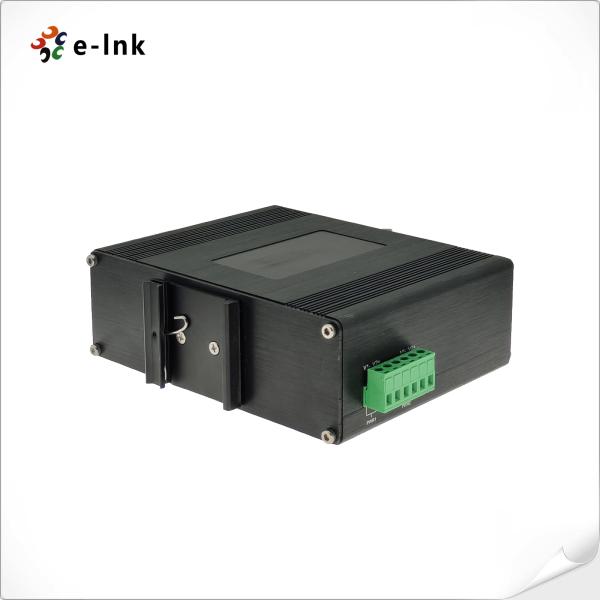

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Specifications
Brand Name :
E-Link
Model Number :
LNK-IMC008
Certification :
ISO9001，ROHS，FCC，CE
Place of Origin :
China
MOQ :
1 pcs
Price :
US$55~US$70 / Pcs
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
4000 Pcs/Month
Delivery Time :
3-5 Working Days
Packaging Details :
Industrial Ethernet Switch standard export package
Dimensions (WxDxH) :
150 x 115 x 50 mm
Weight :
0.6Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Casing :
Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Input Power :
12~58VDC, Redundant Power (6-pin Terminal Block)
Description

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs


Features

► 8 10/100Base-TX ports

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～58VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature


Overview

LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


Technical Indexes


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3x Flow Control

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Cabling

10Base-T: Cat5 or above

100Base-TX: Cat5 or above

Maximum Distance

Cat5 UTP up to 100m

Interface

Connector:

8 x RJ45

Electrical and Mechanical

Input Power:

12~58VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet (Per Port):

Link/Activity

Ordering Information



Model

Description

LNK-IMC008

Industrial 8-port 10/100BASE-T Ethernet Switch

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

Power Supply is to be purchased separately.
