Specifications
Brand Name :
E-link
Model Number :
LNK-HDE-120
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
49USD~59USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
HDMI Extender
Operating Temperature :
-5℃ ~ +70℃
Power supply :
The power adapter: DC 5V
Power Consumption :
MAX 4W
Dimensions (W x D x H) :
100*97.5*17mm
Description

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m) Advantages

► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type

► Uncompressed and zero latency

► Auto adjustment to match the cable length

► The highest resolutions supported is up to 1080P@60Hz

► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

► Support EDID pass-through

► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m) Overview

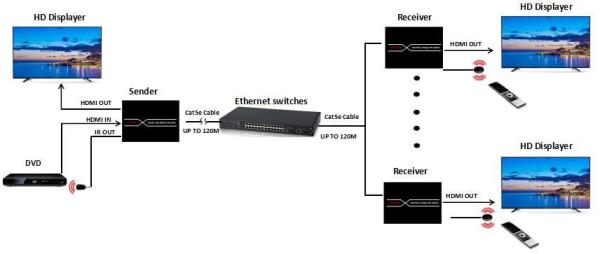

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.

The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m) Technical Indexes

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

Max: 1920X1080@60Hz

Connector

HDMI-A

Impedance

100Ω

IR

Interface

3.5mm earphone seat

Signal direction

Unidirectional

Signal type

Digital

IR frequency

38kHz

Ethernet

Interface

RJ45(568B)

Transmission distance

UTP CAT5e---120m

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m) Ordering Information

Part No

Description of product

LNK-HDE-120

HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs
