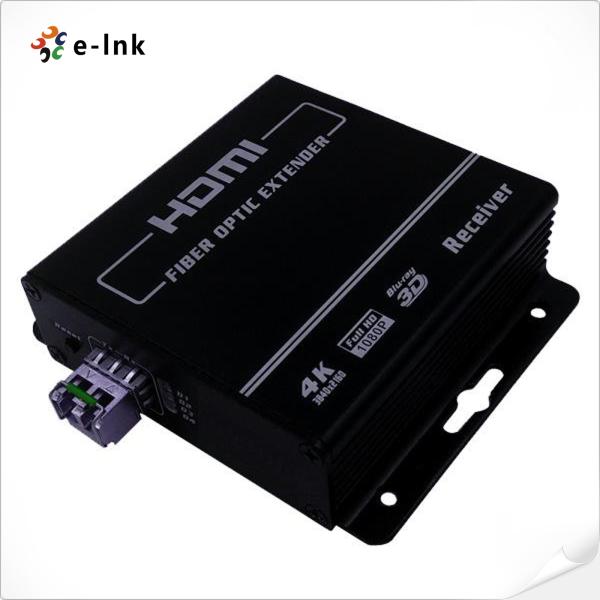

4K HDMI Fiber Optic Extender
4K HDMI Fiber Optic Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-H4K101
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Power dissipation :
MAX 4W
Power supply :
The power adapter: DC 5V/2A
Interface bandwidth :
10Gbps
Wavelength :
Multi-mode 850nm / Single-mode 1310nm(optional)
Fiber type :
Single-mode or Multimode
Interface :
SFP model – LC connector
Description

4K HDMI Fiber Optic Extender


Advantages

► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;

► Support video resolution up to 3840*2160@30Hz, 3D signal;

► Compliance with HMDI 1.4; High compatibility;

► Transmitter includes EDID memory to cache the EDID from any display;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;


Overview

The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter

Description

Video

Standards

HDMI 1.4; HDCP 1.2

Maximum pixel clock

340MHz

Maximum data rate

10.2Gbps

Resolution range

Up to 3840*2160@30Hz

Connector

Female HDMI type A

Impedance

100Ω

Optical fiber

Interface

SFP model – LC connector

Fiber type

Multi-mode / single-mode (optional)

Wavelength

Multi-mode 850nm /

Single-mode 1310nm(optional)

Interface bandwidth

10Gbps

Transmission distance

OM3 multi-mode fiber: maximum 300m,

Single-mode fiber: standard 2km；maximum 60km

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

Max 4W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

104*89*28mm


Order Information

Item

Description

LNK-H4K101

4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs
P.S: HDCP/EDID/CEC Function is not available when using BIDI SFP+ module
