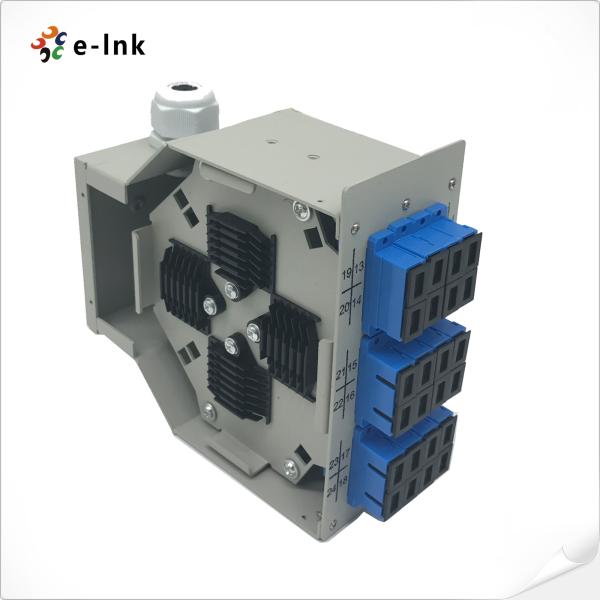

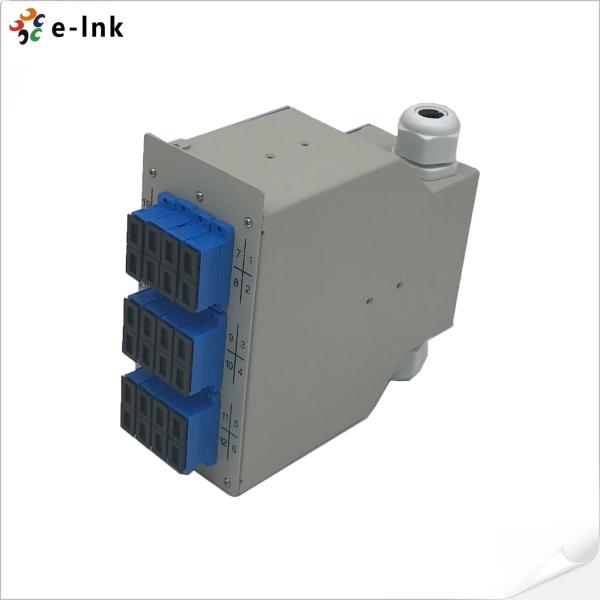

12SC Duplex Din-rail Mount Fiber Patch Panel with IP20 protection 2x rear entries (PG 11 cable gland)
12SC Duplex Din-rail Mount Fiber Patch Panel with IP20 protection 2x rear entries (PG 11 cable gland)
12SC Duplex Din-rail Mount Fiber Patch Panel with IP20 protection 2x rear entries (PG 11 cable gland)
12SC Duplex Din-rail Mount Fiber Patch Panel with IP20 protection 2x rear entries (PG 11 cable gland)
Specifications
Brand Name :
E-link
Model Number :
LNK-FSB-D-12SC
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
US$29-US$15
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
Mount Fiber Patch Panel Carton Packaging
Adapters: :
12 Ports Duplex SC
Installation: :
Din-rail Mounting
Operating Temperature: :
-40°C To 80°C
SC-Duplex :
Max. 12pcs
Design :
Splice distributor
Dimensions (LxWxH) :
131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Description

12SC Duplex Din-rail Mount Fiber Patch Panel


Model:LNK-FSB-D-12SC


Overview

12SC Duplex Din-rail Mount Fiber Patch Panel (E-link 24-port series) is an industrial-
grade fiber optic management solution engineered for efficient connectivity. As a 12SC
Duplex Din-rail Mount Fiber Patch Panel, it supports both direct fiber termination and
fusion splicing, ensuring flexible adaptation to diverse fiber connection requirements
in industrial environments.​
Crafted from high-quality anodized aluminum with a natural finish, this 12SC Duplex
Din-rail Mount Fiber Patch Panel boasts exceptional durability while maintaining a
lightweight and compact profile. The robust material enhances corrosion resistance,
making it suitable for harsh industrial settings where stability is critical.​
A key advantage of the 12SC Duplex Din-rail Mount Fiber Patch Panel lies in its space-
saving design: optimized for din-rail mounting, it integrates seamlessly with other din-rail
equipment in enclosures or cabinets, maximizing space utilization in compact setups.
Specifically configured to accommodate 12 SC duplex adapters, it balances connection
density with operational efficiency, ideal for industrial networks requiring organized and
reliable fiber management.


Material

· Al (Aluminum)


Features

► Up to 12 ports SC-Duplex adapters

► Din-rail mounting

► Space-saving installation

► IP20 protection

► 2x rear entries (PG 11 cable gland)

► Grey color (RAL 7035)

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Other configurations on demand


Technical Indexes

General
Application Harsh environment,
Design Splice distributor
Color Gray
Dimensions (LxWxH) 131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight 0.6KG
Mounting Options DIN-Rail
Connections/Interfaces
Cable access/outlet From top or bottom, straight or inclined
Equipped Adapters
SC-Duplex Max. 12pcs
Mechanical
Strain relief PG gland
Materials
Casing Al (Aluminum)


Ordering information
Model Description
LNK-FSB-D-12SC 12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters
