4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-4KH-UC-1A1R
Certification :
ISO9001,CE, FCC, RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Input Voltage :
DC 5V
Maximum Power Consumption :
10W
Operating Temperature :
-25°C to 55°C (Typical at 25°C)
Humidity :
20%-90%
Device Weight :
1.0kg
Shipping Weight :
1.5kg
Description

4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender


Advantages

► Supports synchronous audio and video extension output.

► Supports video bandwidth up to 18Gbps.

► The transmitter features a loop-out interface (for sharing local signals) and external audio embedding capability.

► The receiver is equipped with a backup output interface and audio de-embedding output functionality.

► The receiver is equipped with a backup output interface and audio de-embedding output functionality.

► Transmission distance can reach up to 10 kilometers (using single-mode fiber).

► Supports video resolutions up to 4K2K@50/60Hz: 7680*2160 30Hz 4:4:4 transmission.

► Capable of custom non-standard resolution transmission, with a maximum width and height of 7680 pixels.

► HDMI audio formats supported: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.

► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.

► Strong compatibility, widely applicable to LED/LCD/projection and other display devices.


Overview

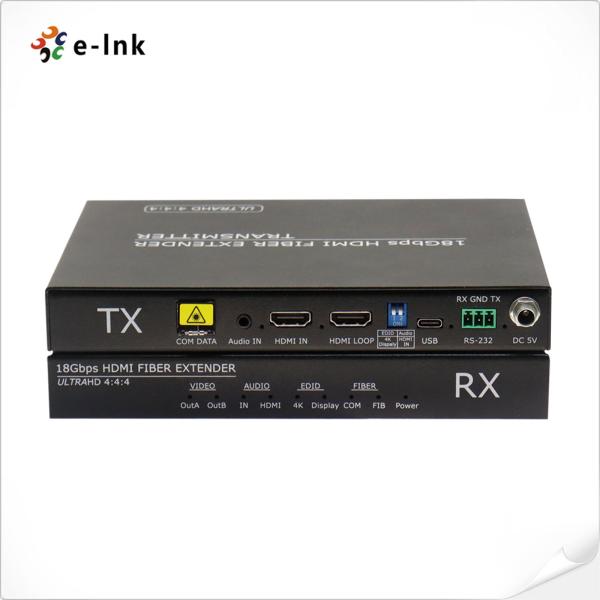

LNK-4KH-UC-1A1R. HDMI signal input port used to connect to HDMI source devices such as PCs, Blu-ray DVD players, etc. HDMI video loop-out port, used to connect to HDMI display devices for sharing local high-definition audio and video signals, such as HDTV, projectors, etc.

This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.


Technical Indexes

Transmitter Interfaces

Standards

1 x HDMI 2.0 Input (4K@60Hz)

1 x HDMI 2.0 Loop-out (4K@60Hz)

1 x Audio Input

2 x LC Fiber

1 x RS232

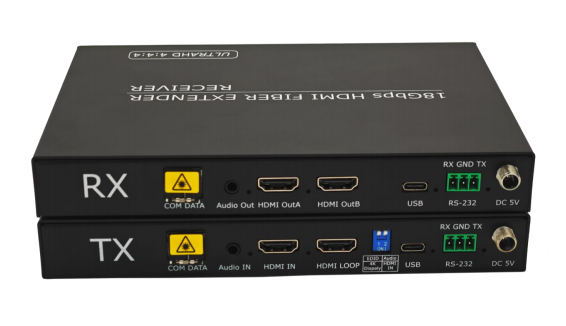

Receiver Interfaces

Standards

1000Base-SX/LX/LH

1 x Audio Output

2 x LC Fiber

1 x RS232

Video Resolution

HDMI

SMPTE:720P/1080P/2160P

VESA: 800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1400x1050/1600x1200/1920x1080/1920x1200/2048x1152/2560x1600/3840x1080/3840x2160/4096x2160/7680x2160/7680x1080/3840*2400/7680*1200/2160*4096

Supports custom non-standard resolutions

Refresh Rate

23.98/24/25/29.97/30/50/59.94/60Hz


Order Information

Model

Description

LNK-H4KU

4K@60Hz4:4:4Uncompressed Audio-Video Fiber Optic Extender,

1 x HDMI 2.0 Input (4K@60Hz)

1 x HDMI 2.0 Loop-out (4K@60Hz)

Video Resolution

Supports custom non-standard resolutions

RS-232 Pass-through Interface:

Transmits RS-232 command signals between the transmitter and receiver.

Power Interface

DC 5V/2A



4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender



Application

4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
