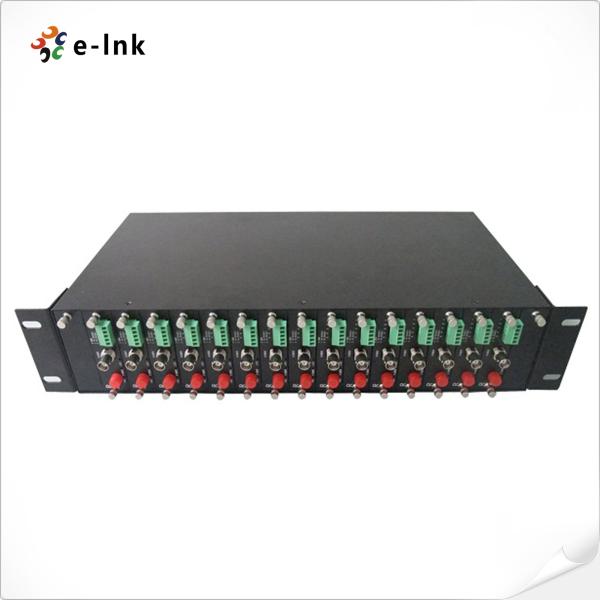

16-slot Video Converter Rack
16-slot Video Converter Rack
16-slot Video Converter Rack
16-slot Video Converter Rack
Specifications
Brand Name :
E-link
Model Number :
LNK-V16
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Weight :
5.4KG
Dimension (mm) :
423x230x90
Operating Voltage :
DC 5V
Operating Temperature: :
-30°C to +55°C
Description

16-slot Video Converter Rack

Product Advantages

► The configuration of active/standby power supply ensures uninterruptible operation of the system.

► Provide two power supplies, enabling the system can work under many operating environments;

► Supporting simultaneous operation of 1Ch or 2Ch Card-type Video Converters, which greatly improves system adaptability;

► Supports hot swapping;

Overview

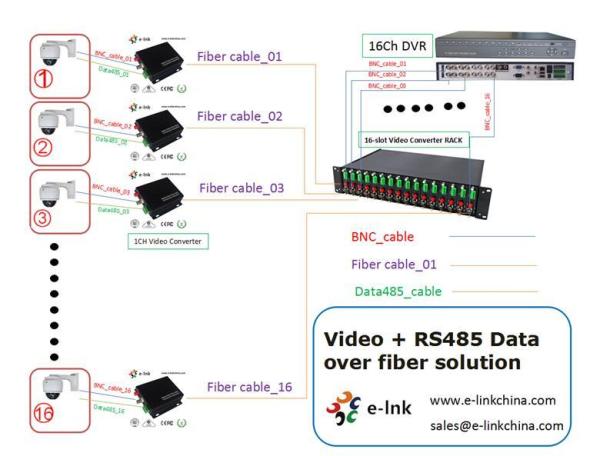

LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.

Technical Indexes


Parameter

Specifications

Number of slots

16

Structure

19” 2U rack

Card-type video converter support

1Ch or 2Ch

Power input

AC Voltage: AC 100~260V; frequency: 50/60 Hz

Power output

DC5V

MTBF

> 100,000 hours

Power configuration

Single power supply; or

Dual power supply for warm backup mode

Dimension (mm)

423x230x90

Weight

5.4KG

LED indication

POWER (power supply)

Operating temperature

-30°C to +55°C

Storage Temperature

-40°C to +85°C

Relative humidity

5%~90% (non condensing)
Odering Information

Model

Description

LNK-V16

19" 2U Rack-Mount Chassis, 16-Slot, 16pcs 1CH Card-type Video Receiver can be put in the Chassis, Dual Power Supply
