Specifications
Brand Name :
E-link
Model Number :
LNK-CSH-12G
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Converter Standard Export Package
Keywords :
HDMI Converter
Operating Temperature :
0 to 55℃
Dimensions (W x D x H) :
253 x 162.5 x 40mm
Shippingweight :
1030g
Humidity :
Less than 95℃
Description

12G-SDI to HDMI 2.0 Converter

12G-SDI to HDMI 2.0 Converter Advantages

► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p

► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output

► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ

► Support audio embedding and de-embedding, compatible with AES/RCA audio

► SDI supports 8 Channels for embedded audio

► Support HDMI HDCP ON and OFF

► Fiber SFP port available, support 12G remote transmission

► Support phantom power

12G-SDI to HDMI 2.0 Converter Overview

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.

12G-SDI to HDMI 2.0 Converter Technical Indexes

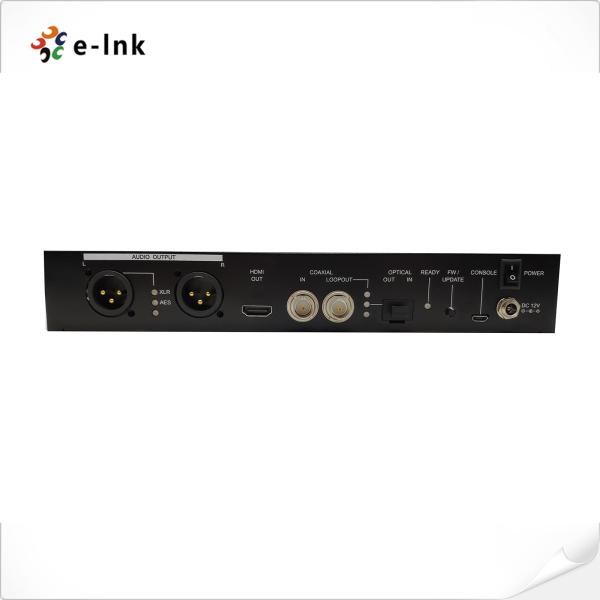

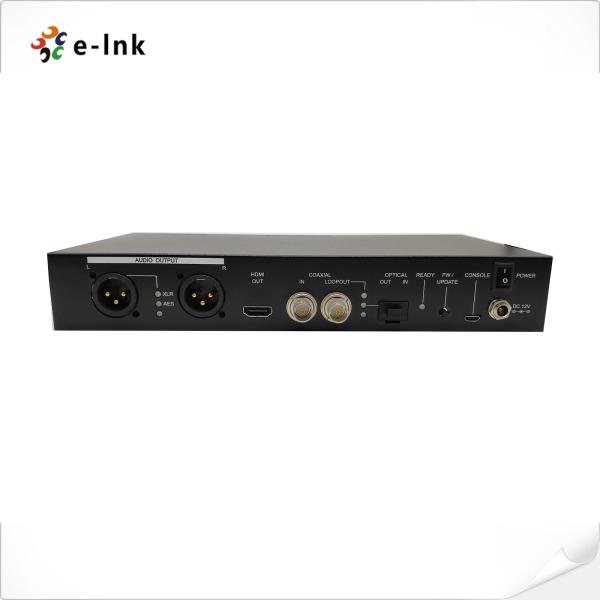

Input Interface

1 x 75Ω BNC,

1 x Video SMPTE SFP+

Output Interface

1 x HDMI Type A,

1 x 75Ω BNC,

1 x Video SMPTE SFP+

Audio Interface

2 x XLR Male Jack

2 x XLR Female Combo 6.4 Jack

2 x 10KΩ RCA

Transmission Distance

Fiber SFP

10KM

12G-SDI

40M

3G-SDI

100M

HD-SDI

200M

12G-SDI to HDMI 2.0 Converter Ordering Information

Model

Description

LNK-CSH-12G

12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules)
