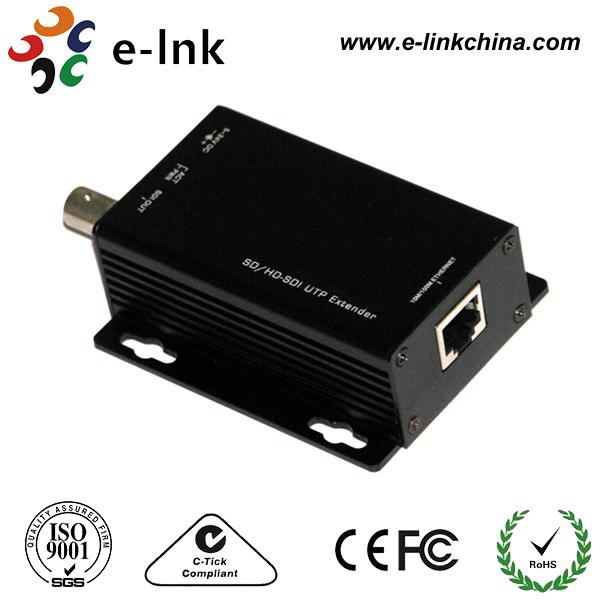

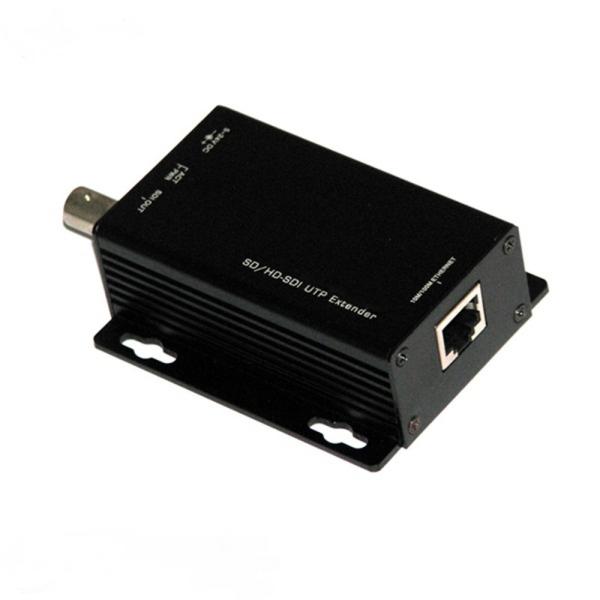

HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit
Specifications
Brand Name :
E-link
Model Number :
LNK-DTS050
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Video Extender
Operating Temperature :
-10°C ~ 60°C / 14°F ~ 140°F
Dimensions (W x D x H) :
98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches
Power Supply :
DC12V/1A
Power Consumption :
2.5W (Tx and Rx)
Description

HD-SDI Video Extender over CAT5 / 6 Kit


HD-SDI Video Extender over CAT5 / 6 Kit Advantages

► SDI Standard: HD-SDI, SD-SDI

► Up to 50m / 160ft via CAT5e cable

► Up to 60m / 200ft via CAT6 cable

► Supports SDI-SMPTE 259M-C (270Mbps);

► HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)

► LED diagnostics: sync, SDI auto-detection

HD-SDI Video Extender over CAT5 / 6 Kit Overview

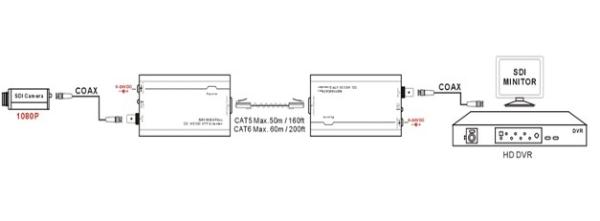

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.


HD-SDI Video Extender over CAT5 / 6 Kit Technical Indexes

Model

LNK-DTS050

Type

Transmitter

Receiver

Standard Supported

SMPTE 259M (270Mb/s), SMPTE 292M

Speed

270Mb/s, 1.485Gb/s (automatic selection)

Support Input Format

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

720p @ 50Hz / 59.94Hz / 60Hz

1080i @ 50Hz / 59.94Hz / 60Hz

1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz

Indicators

Power on (on both end)

Sync detection (on both end)

Link between the two units working (on both end)

Connectors

1x BNC 75 ohm female

1x RJ45 of CAT5e/6 unshielded or shielded twisted pair

1x power plug, 2.1mm

HD-SDI Video Extender over CAT5 / 6 Kit Ordering Information


Part No

Description of product

LNK-DTS050-T

SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter;

LNK-DTS050-R

SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver
