24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-XS2404
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package
Console Port :
1
IPv4/IPv6 Route :
6k/8k
VLAN ID :
4K
Flash Memory Capacity :
32M
Memory :
1GB DDR3 SDRAM
CPU :
PPC Dual-core 800MHz
Description

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports

Managed Ethernet Fiber Switch

Managed Ethernet Fiber Switch Advantage

► With 490Gbps backplane bandwidth, the industry the highest performance (1U TOR)

► The layer 3 switching hardware routing, wire speed packet rate reached 364.56Mpps, L2 / L3 forward full speed

► 24 10Gb optical ports, the highest density (1U TOR), meet the demand of high-density 10G server access

► Has 4 1G photoelectric reuse ports, industry the only high density 10G switches provide more 1G port access

► Provide flexible network capacity

Managed Ethernet Fiber Switch Overview

LNK-XS2404 Series Switches are 10Gb Data Center Switch. Provide high exchange capacity, the capacity of support ACL function based on three or four layers. Perfect safety control strategy and the CPU protection strategy (CPU protect policy) to improve the fault tolerance, ensure the stable operation of the network and link load. 6600 Series Switches adopts modular design, Can be deployed in the metropolitan area network, and provides a few last 1 km technological to gather and core data exchange. To provide enough bandwidth, the user can accord to demand to choose the appropriate 10G port in a flexible response network requirement. 6600 Series Switches Provided high backplane bandwidth , low latency, simple network management and other characteristics, located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, gathering.

Managed Ethernet Fiber Switch Technical Indexes

Basic Feature

Fixed port

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports

Console port

1

OOB management port

1

Backplane bandwidth

490Gbps

Packet forwarding rate

364.56Mpps

Jumbo frames

9216 bytes

Transfer mode

Support store-forward mode and cut-through mode

IPv4/IPv6 route

6k/8k

MAC address table

128K

Packet Buffer

9MB

VLAN ID

4K

Flash

32MB

Memory

1GB DDR3 SDRAM

CPU

PPC Dual-core 800MHz

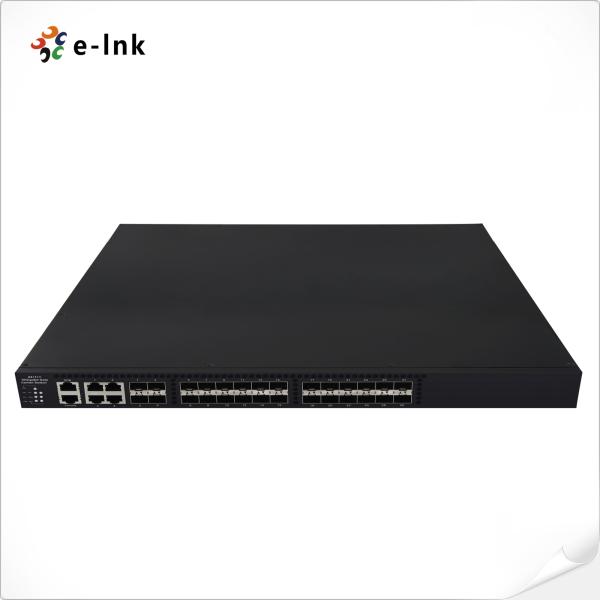

Managed Ethernet Fiber Switch Picture

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch

Managed Ethernet Fiber Switch Ordering Information

Item

Description

LNK-XS2404

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
