Specifications
Brand Name :
E-link
Model Number :
LNK-DKM100-T
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature: :
-5℃ ~ +70℃
Power dissipation :
MAX 6W
Power supply :
DC 5V/2A
Resolution :
1920X1080P@60Hz, 4K*2K
Operating Humidity :
5% ~ 90%
Warranty :
2-year
Description

HD-BaseT DVI KVM Extender Over 100m Single Cat6/7 Cable

Product Advantages

· Transmits DVI video signals up to 100m over a single CAT6 cable

· Support video resolution up to 1920*1080P@60Hz and 4K*2K

· Support HD BaseT technology

· Support KVM, keyboard and mouse signal transmission

· Support RS232 signal bi-directional transmission, baud rate self-adaptive

· Compliance with DVI 1.0 and HDCP 1.2 standard

· High compatibility, can auto-match source and display device

· Built-in automatic adjustment system, make the image smooth, clear and stable

· Built-in ESD protection system

· Simple to install, plug and play

Overview

The DVI KVM extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Technical Indexes

Parameter

Description

Video

Standards

DVI 1.0; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

10.2Gbps

Resolution

1920X1080P@60Hz, 4K*2K

Connector

DVI-D

Impedance

100Ω

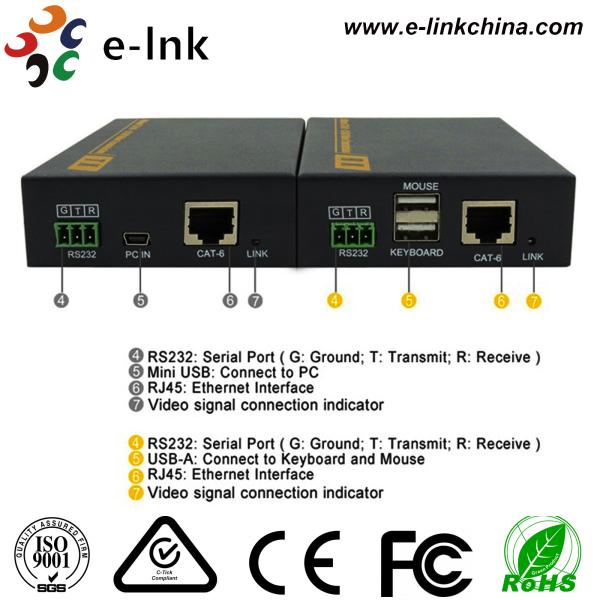

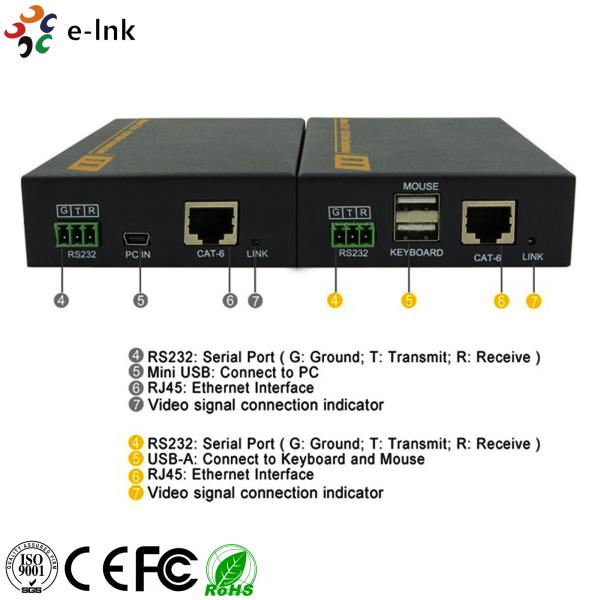

RS232

Interface

Industrial terminal

Signal direction

Bi-directional

Baud rate

Self-adaptive, Max: 115200bps

Data bits

8

KVM

Interface

PC: MINI-USB

Keyboard and mouse: USB-A

Ethernet

Interface

RJ45

Transmission distance

1080P: CAT6---100m

4K*2K: CAT6---70m

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

105*76*27mm

Warranty

2-year


Odering Information

Item

Description

LNK-DKM100-T

DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Transmitter, 100 meters

LNK-DKM100-R

DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Receiver, 100 meters
