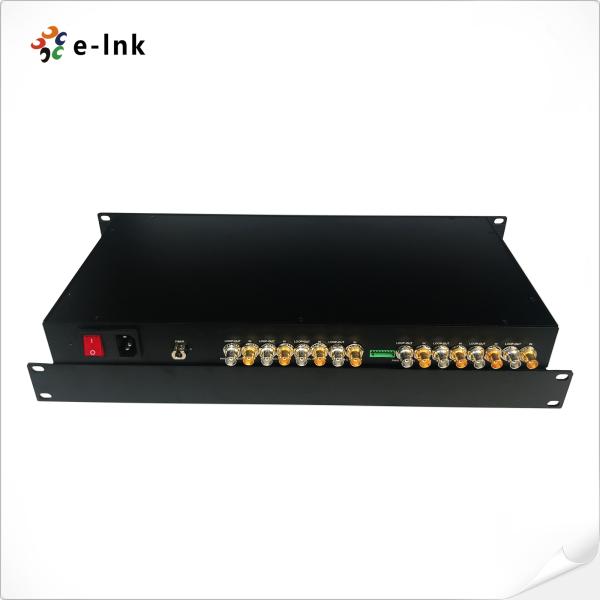

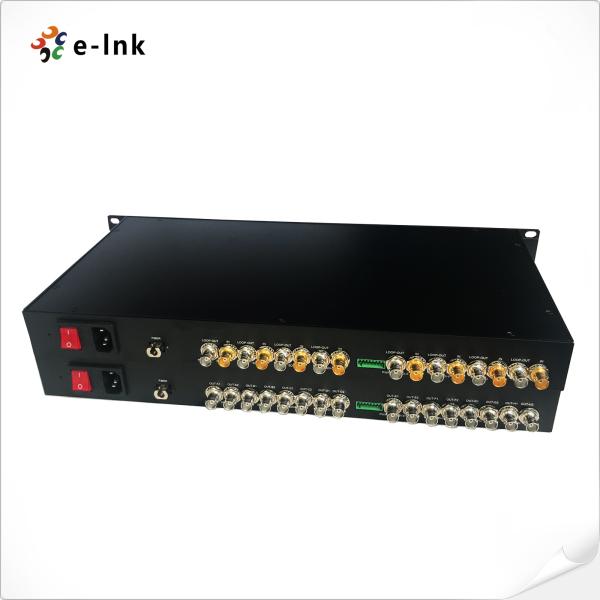

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-SDI-8V
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$999
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber ConverterStandard Export Package
Keywords :
Fiber CWDM Uncompressed Extender
Dimensions (WxDxH) :
19inch 1U (483 x 220 x 44.45mm )
Operating Temperature :
-20℃～+70℃
Power dissipation :
<15W
Weight :
7KG/pair
Description

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender Advantages

► 8 channel SD/HD/3G-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols

► Long transmission capability at least 10 km (6.2miles), up to 120 km

► Terminal block power input for industrial application

► Supports hot swapping and hot plugging

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment prior to use;

► fiber optic WDM/CWDM/DWDM technique;

► Real-time status LED indicators for troubleshooting and monitoring

► Industry level ultra-broad temperature range, adaptable to various environments;

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender Overview

LNK-SDI-8V Series supports 8-channel SD/HD/3G-SDI standard high-definition video signal transmitted via single fiber optical cable, and monitor the signal locally over a SD/HD/3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link SD/HD/3G-SDI Fiber Converters can simultaneously transmit 8-Ch SD/HD/3G -SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

1080P 23.98/24/30/50/60

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Data

Physical interface

Industrial standard screw terminal

Data type

Reverse RS485

Frequency/Rate support

Max. 57600bps for RS485

BER

<10ˉ9

Electrical

Power adaptor

AC 110~220V

Power consumption

<15W

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender Ordering information

Model

Description

LNK-SDI-8V

19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs

LNK-SDI-8V1R

19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs

LNK-SDI-8V1A

19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-8V

19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-8V1R

19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-8V1A

19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
