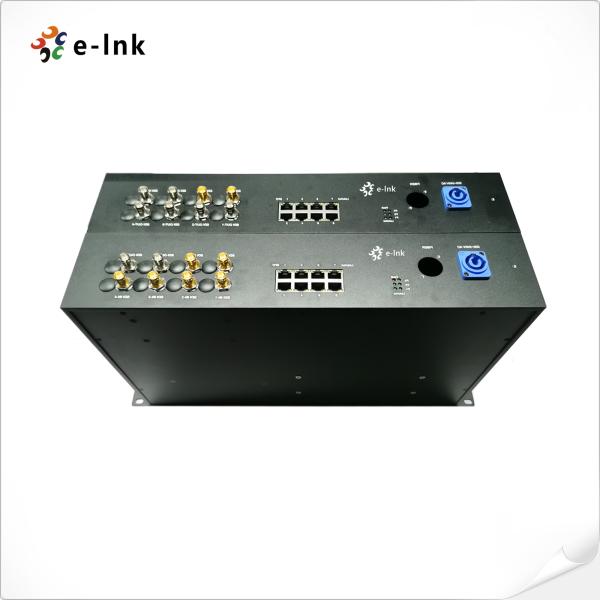

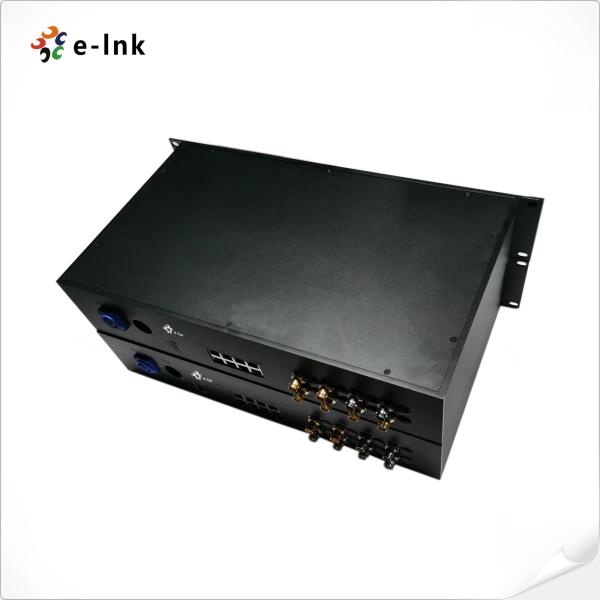

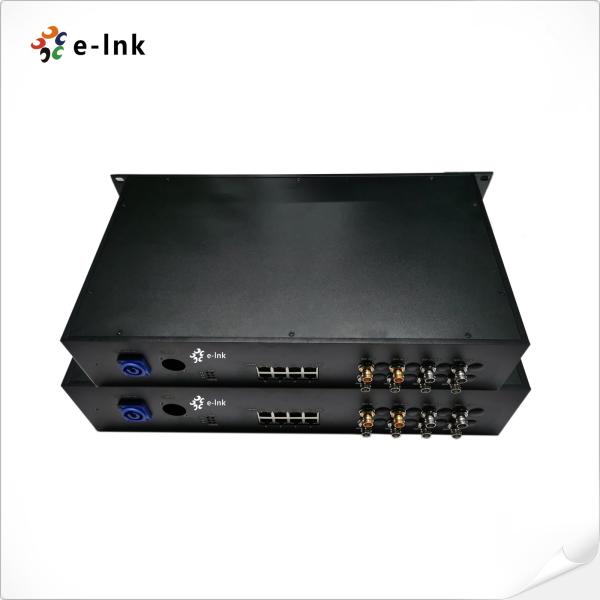

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-3GSDI-6FV2BV8GP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Extender Standard Export Package
Keywords :
SDI Fiber Optic Extender
Operating Temperature :
-20℃～+70℃
Dimensions (LxWxH) :
19” 2U Rack
Average time trouble-free :
≥100000 hours
Weight :
11.5KG/pair
Description

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender Advantages

► 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over Single Fiber

► Compatible with 3G-SDI, HD-SDI, SD-SDI, DVB-AST

► Bandwidth range from 19.4Mb/s to 2.97Gb/s

► SMPTE 424M (2.97Gb/s) clock recovery

► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

► Built-in CWDM system, SFP modules for each path

► Support automatic cable equalization based on the data rate detected

► LED status indicators monitor the critical parameters

► 19” 2U Rackmount

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender Overview

LNK-3GSDI-6FV2BV8GP supports 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over single fiber transmission. It offers the digital transmission of fully uncompressed SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) by single fiber over broadcast quality. The 8 POE ports meet 802.3af / 802.3at standard with 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

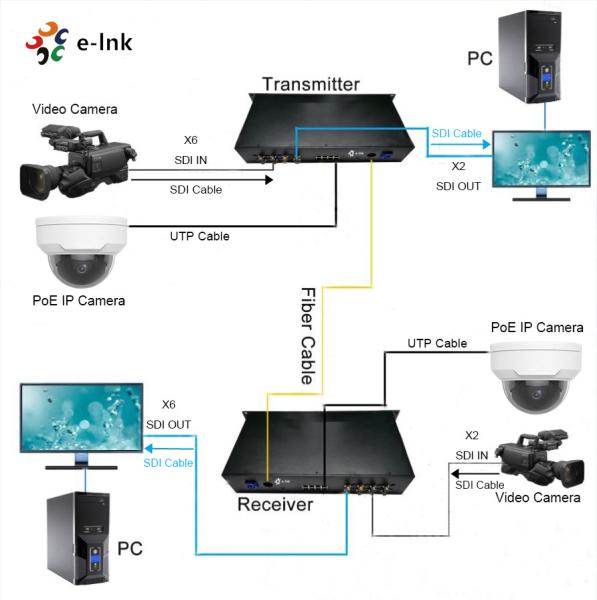

Since optical signals are not affected by electromagnetic noise, LNK-3GSDI-6FV2BV8GP makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3GSDI-6FV2BV8GP pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km.

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Video Input

6 Channel 3G-SDI

Video Output

2 Channel 3G-SDI

Ethernet

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

Power over Ethernet

IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA

IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA

Power Pin Assignment: 4/5(+), 7/8(-)

Date Rate

10/100/1000Mpbs

Connector

8 x RJ45

Max. Power per Port

RJ45 Port 1 ~ Port 8 (30W Max per port)

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender Ordering information

Model

Description

LNK-3GSDI-6FV2BV8GP

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount

8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender
