Specifications
Brand Name :
E-link
Model Number :
LNK-M3G-SMB1V-20
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
129USD~149USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Extender Standard Export Package
Keywords :
Optical Micro-Extender
Operating Temperature :
-20℃～+70℃
Dimensions (LxWxH) :
58 x 21 x 20 mm
Consumption :
<5W
MTBF :
≥100000 hours
Weight :
100g/pair
Description

SMB 3G/HD/SD-SDI Optical Micro-Extender

SMB 3G/HD/SD-SDI Optical Micro-Extender Advantages

► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

► Transmission distance up to 120km

► CWDM technology to allow up to 16(18) channels to transmit over one fiber

► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N

► Compliant with DVB-ASI(EN50083-9)

► Convenient instruction of LED status. Fiber link indicator, power.

► PCB board is environmentally friendly (Pb-free)

► PCB board with multilayer design to ensure stable and reliable signal transmission

SMB 3G/HD/SD-SDI Optical Micro-Extender Overview

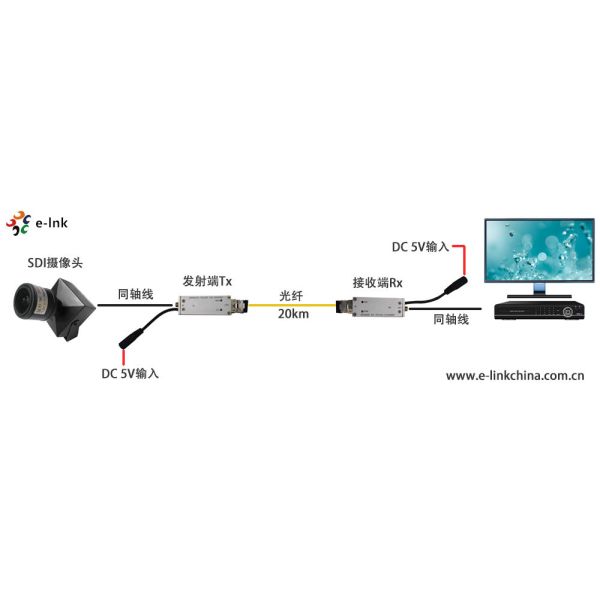

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.

SMB 3G/HD/SD-SDI Optical Micro-Extender Technical Indexes

SDI Input

Video standard

SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)

Signal standard

SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

Resolution

10 Bit

Signal level

<380mVp-p

Impedance

75Ω

Connector

SMB

SDI output

Signal level

800mVp-p±10%

Rise/Fall time

<0.8ns

HD-SDI Jitter

<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz

SDI Jitter

<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz

Impedance

75Ω

Connector

SMB

Optical Interface

SFP

Simplex LC, 3,125Gbps. ≤120km transmission distance

Standard SM wavelength

1310nm, 1550nm

CWDM wavelength

1270~1610nm, 20nm grid according ITU-T

Temperature range

0~70˚C

SMB 3G/HD/SD-SDI Optical Micro-Extender Ordering Information


Model

Description

LNK-M3G-SMB1V-20

SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs
