Specifications
Brand Name :
E-link
Model Number :
LNK-M3G-BI20
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Converter Standard Export Package
Keywords :
Fiber Converter
Operating Temperature :
-20℃～+70℃
Dimensions (LxWxH) :
80 x 40 x 20 mm
Consumption :
<5W
MTBF :
≥100000 hours
Weight :
0.8KG/pair
Description

Mini Bi-directional HD/3G-SDI to Fiber Converter

Mini Bi-directional HD/3G-SDI to Fiber Converter Advantages

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;

► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Mini Bi-directional HD/3G-SDI to Fiber Converter Overview

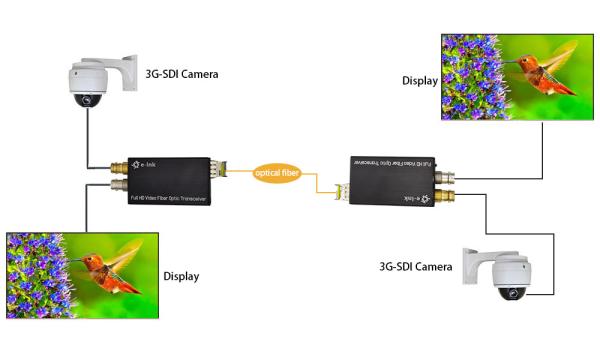

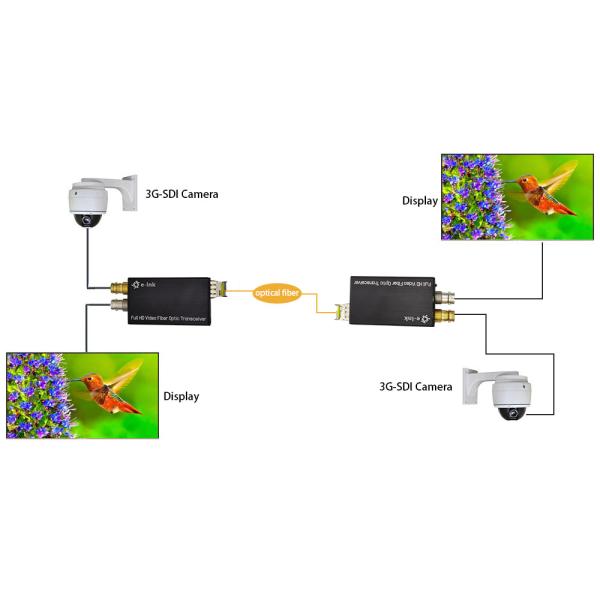

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.

Mini Bi-directional HD/3G-SDI to Fiber Converter Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

0-20Km (Other distance available)

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

1080P 23.98/24/30/50/60

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Mini Bi-directional HD/3G-SDI to Fiber Converter Ordering Information

Model

Description

LN K-MHD-BIMM

Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs

LNK-MHD-BI20

Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-MHD-BI40

Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs


Model

Description

LNK-M3G-BIMM

Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs

LNK-M3G-BI20

Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-M3G-BI40

Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
